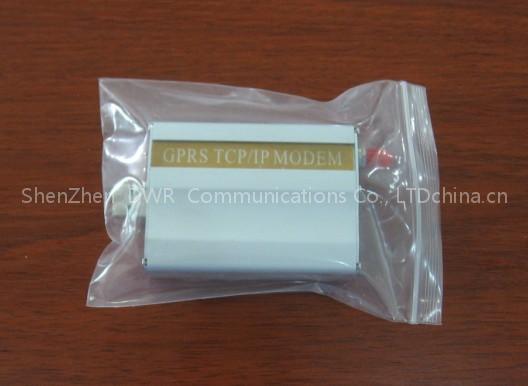

WAVECOM Q24R-PLUS GPRS/GSM MODEM
Specifications
- Origin
- France
- Price Term
- FOB
WAVECOM Q24R-PLUS GPRS/GSM MODEM is a Telecommunications product. Key specs — Origin: France; Price Term: FOB.
Product Description
Description
| |
| |
Specifications | |
| |
Model | Q24R-PLUS |
Design | Industrial Design, Aluminium Casing |
Based On | Based on WAVECOM Module Q24PLUS |
Band | 850/900/1800/1900 MHz, in compliance with ETSI GSM Phase2 + Standard |
Internet | Wireless Access to internet |
TCP/IP stack | YES |
AT Commands | Remote control GSM 07.07 & 07.05 |
Interface | DB-9 RS232 Serial Port |
SIM Slot | 3 Volt SIM Card slot |
GPRS Class | GPRS Class 10 |
Enhanced Functions | GPRS link detection and redial (work with Microsoft dialup software) Support dialup control |
Transmitting Speed | Maximum Transmitting Speed 115.2 Kbps |
DTMF | Yes |
Work | Send and Receive SMS, Data, FAX, E-mail Voice, MMS |
SMS | Point-to-point MO and MT SMS cell broadcast Text and PDU mode |
Antenna | Male SMA connector |
Output Power | 850/900MHz 2W (Class 4) 1800/1900MHz 1W (Class 1) |
Input Voltage | 5V to 24 V DC |
Input Current | 1A to 2 A |
Working Temp. | (-20C to +60C) |
Store.temp. | (-25C to +70C) |
Size | 73*54.5*25.5mm |
Weight | 80g |
Accessories | AC-DC Adapter, RS232 Cable, , Antenna |
| |
ORDERING INFORMATION | |
| |
AG-A24R-PLUS | RS232 Interface GPRS Modem |
AG-A24U-PLUS | USB Interface GPRS Modem |
AG-A24P-PLUS | PCI Interface GPRS Modem |
