Name: W12 4-rolling machine
Brand: gutai
SKU: W12 4-

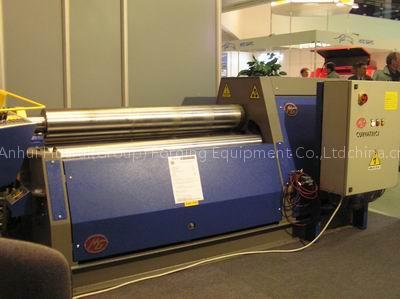

W12 4-rolling machine

W12 4-roll rolling machine with mechanically-driven up-roll, and hydraulically-driven low-roll and side-roll, is electrically controlled. The machine can finish pre-changing of two ends of plates, rolling of cylindrical or arc parts, levelling and pre-bending of metal plates at one time,thus, it is very effective.

Technical Parameters	12×4000	16×3200	20×2500	25×2000	32×4000	40×3200	45×2500	50×2000	20×2500	25×2000	32×2500
Max. rolling width(mm)	4000	3200	2500	2000	4000	3200	2500	2000	2500	2000	2500
Max. rolling thickness(mm)	12	16	20	25	32	40	45	50	20	25	35
Max. prebending thickness(mm)	8	21	16	20	25	32	40	42	16	20	30
Min. rolling diameter(mm)	800	800	800	800	1300	1300	1300	1300	800	800	1000
Plate yield limit (Mpa)	275	275	275	275	245	245	245	245	245	245	245
Up-roll diameter (mm)	380	380	380	380	650	650	650	650	400	400	560
Down-roll diameter(mm)	340	340	340	340	580	580	580	580	380	380	540
Side roll diameter (mm)	280	280	280	280	480	480	480	480	320	320	400
Plate rolling speed(mm)	4	4	5	5	4.5	4.5	4.5	4.5	5	5	4.5
Operating pressure of hydraulic system(Mpa)	16	16	20	20	16	16	16	16	12	12	15
Power of main motor (kw)	30	30	30	30	45	45	45	45	30	30	45
Overall dimensions (L×W×H) (m)	7.6× 2× 2.15	6.8× 2×2.15	5.68× 2.38× 3.67	5.56× 2× 2.2		11.5× 2.9× 3.33	10.8× 2.9× 3.33	10.3× 2.9× 3.33	6.06× 2× 2.2	5.56× 2× 2.2	6.5× 2.76× 3.15

The parameters are subject to change without notice.
