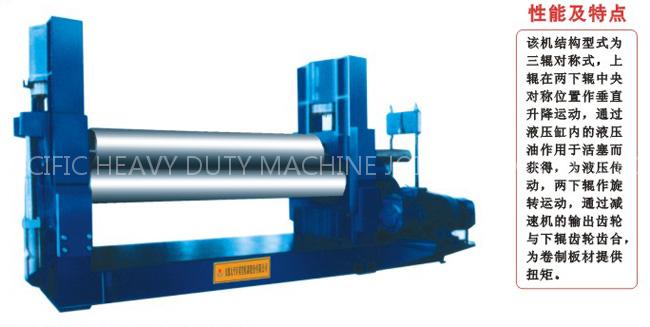

W11 series hydraulic three rollers symmetrical rolling machine

It is hydraulic three rollers rolling machine that used for coiling armor plate into columnar materials .the upper roll drives up the low roll moving up and down by hydraulic cylinder , the low roll rotates through the motor, reducer, the gear-driven at the time of rolling and become active rolls when the plate rolling . the low roll add volume cone devices which can achieve large conicity of the taper rolling.As the elevation of low roll is not change , so easy to feed and operation.

The vertical movement of upper roll use figures show that the eye-catching visualâ…¡, The main parameters W11Y-70×3000hydraulic symmetrical three rollers rolling machine

Max plate width 3000mm

Max rolling thickness 70mm

Full loaded with the smallest diameter Φ2800mm

Plate yield limit(Q235) 245Mpa

Up-roll diameter 710mm

Low-roll diameter 620mm

The central distance of two low rollers 850mm

Rolling speed About 3.5m/min

Main motor power 90kw

hydraulic motor power 37kw

(3)the machine can be pre-bent.
