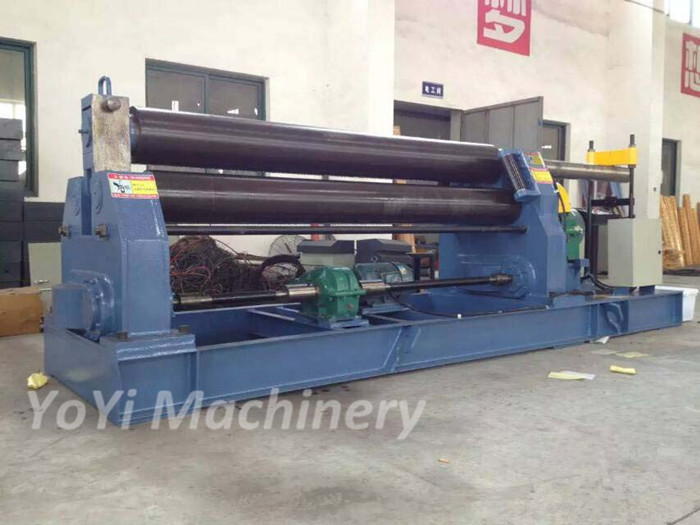

W11-16x2500 mechanical 3 roller bending machine
Specifications
- Brand
- Muyoca
- Origin
- China
- Certifications
- ISO9001
- MOQ
- 1 set
- Packaging
- Wrapped by plastic films and fixed by steel wires in the containers.
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C,Western Union
- Supply Ability
- 10 Sets Per Month
- Delivery Time
- 20 days
- Guarantee
- One year
W11-16x2500 mechanical 3 roller bending machine is a Metal & Metallurgy Machinery product. Key specs — Brand: Muyoca; Origin: China; Certifications: ISO9001; MOQ: 1 set.
Product Description
W11-16x2500 mechanical 3 roller bending machine W11 Series Mechanical Three-roller Plate Rolling Machine Features: 1.Three-roller symmetrical structure. 2.Upper roller is the passive roller and two lower rollers are the main driving rollers.
3.Upper roller moves vertically in the central symmetrical position of two lower rollers, which is achieved through the drive of the lead screw, the nut and the worm. 4.Two lower rollers rotate and provide plate with torque through the meshing between reducer output gear and lower rollers gear.
Main Configurations: Chassis and Side Frame:Q235A Upper Roller Material: 42 CrMo Lower Roller Material: 45# steel Main Motor:Siemens Sealing Rings: VALQUA Electrical Components:Schneider
