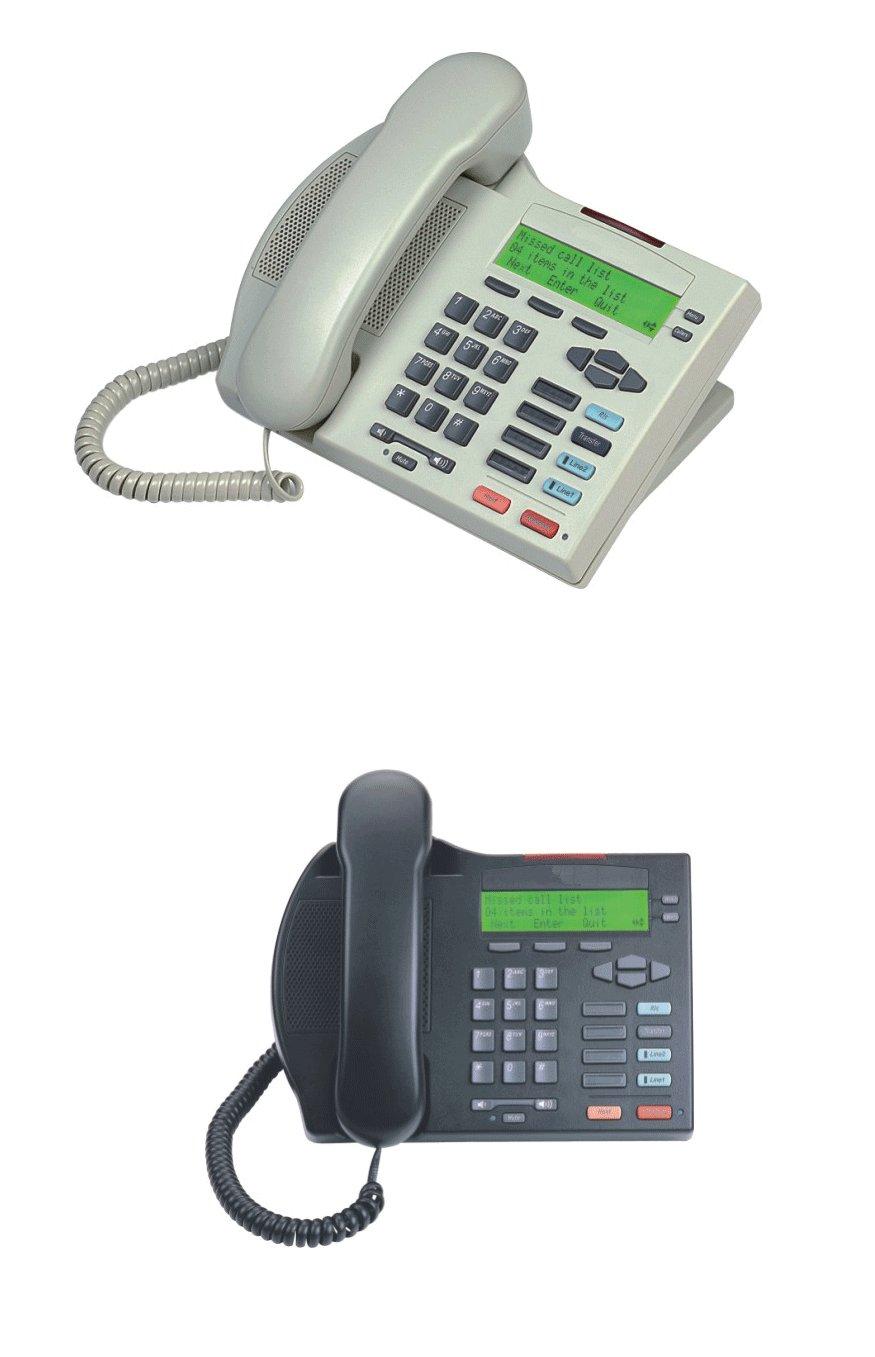

Voip Phone Sip Phone ph807

PH807 is a newly-developed high-tech professional IP Phone produced by Wuchuan Network. It supports standard SIP/IAX2 protocol, and full functions such as call transfer, call waiting, CID, etc. It's a convenient and durable IP phone with modern design and housing.

Main Functions list:

- CID from phone book

-500 entry phone book

-Find contacts from phone book by names or numbers

-Speed dial from phone book and call log (numbers can be edited)
100 number redial list

- Missed / outgoing / incoming call logs; 300 incoming/outgoing call record
Caller ID and Call-waiting caller ID
Conference calling (with or without server)
Call transfer (blind or consultative)/ Call hold, call waiting, and call forwarding
Do not disturb/ Auto answer

- Pre-dialing function (dial without picking up)

- Configurable dial plan
Unique number note pad (for recording number)
Date and origin time record of incoming/outgoing calls/ Call duration record
4 programmable keys for speed dial or PBX operation
LED with backlight in 3 lines 24 bytes

-Voicemail Indicator

- Flash / Release / Hold / Volume keys
Missed call prompts by LCD/indicator

-Hands free on/off with LED indicator

- Mute on/off with LED indicator

-Incoming call ring and extension phone statusindicator

- Volume and Ringer level control

Advanced Functions:

· Support SIP (RFC3261, RFC3262)
middot; Support IAX2 protocol
middot; Support voice codec: G.711 A law and G.711 U law 64K/ G.729/ G.723.1
middot; Support peer-to-peer calling
middot; Menu layout for easy navigation via 3 soft keys under LCD
middot; 8 distinctive and 2 user-defined ring tone
middot; Hands free full-duplex speaker phone
middot; 802.3af Power over Ethernet (POE)
middot; Headset jack (RJ9)
middot; VLAN and DSCP support
middot; 4 or 12 (with expansion module) programmable keys for speed dial or feature access.
middot; English/French/Spanish menu language
middot; Wall mount support
middot; Hearing aid function

Network Features
middot; WAN/LAN: Support Bridge and Router mode, integrated 2 port 10/100 Mbps Ethernet switch
middot; Support basic NAT and NAPT
middot; Support PPPoE for xDSL, and support auto redial when disconnect
middot; Support DHCP Client for WAN
middot; Support DHCP server for LAN
Support DNS, SNTP, firewall
Network tools in telnet server: including ping, race route, telnet client
middot; Qos: DiffServ / IP Precedence; IEEE802.3p

Configuration and management:
middot;Simple Web-based and keypad configuration and status check
middot; Auto-provisioning using TFTP/FTP
middot; Manage the phone remotely via web browser
middot; Software upgrade via TFTP/FTP/WEB

Technical Database:

· Dimensions: 23cm * 18cm * 13cm (L*W*H)
middot; Weight: 0.85 kg
middot; Color: black /ivory
middot; Dial method: DTMF Tone
middot; Flash time: 100ms/800ms (default set)
middot; Power: POE or 9V DC

· 132*24 dot matrix LCD
