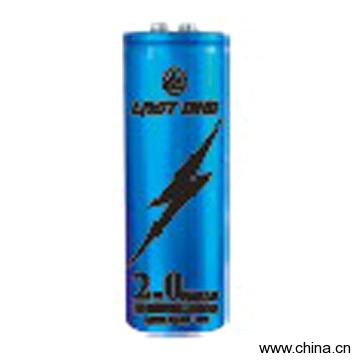

Video Capacitor is a Capacitors product. Key specs — Origin: China (Mainland).
Product Description
Model No.:HY145-B Product Origin:China Brand Name:Lastone Price Terms: Payment Terms: Certification: Description:Installation and mounting guidelines:The video capacitor should be installed as close to your amplifier(s) as possible.
The ideal location is one that allows for short wiring runs while keeping the capacitors somewhat isolated from the heat created by the amplifier system. The positive power wire should be kept as short as possible and connected to the amplifier, battery supply cable.
We recommend that high performance distribution block be used to create a splice into this cable shown below. No fuses should be installed in the wire between the power capacitor and the amplifier system, but make sure that there is an appropriate fuse at the battery in the main supply cable.
The ground cable for the power capacitor should be kept as short as possible and connected directly to the vehicle chassis at a bare mantle surface. Do not ground the capacitor directly to the amplifier ground terminal or ground positive and negative wires for the capacitor should be the same gauge as the amplifier power wires.
High performance 8 of 10 AWG OFC power cables are a good choice for this application. Connect the remote terminal to the remote terminal of your amplifier(s) using 18 to 20 AWG primary wires.
