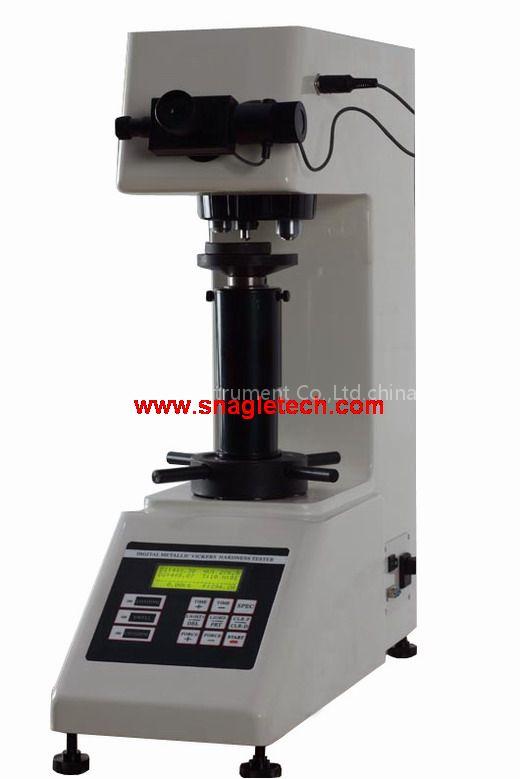

Name: Vickers Hardness Tester
SKU: HVS

adopts precise structural design, testing force changed from weight to sensor control, it makes the machine with simplicity structure and stable, accuracy force display. This series Vickers hardness tester is controlled by CPU on the whole testing procedure and adopts latest technology, such as high definition optical measurement system, photoelectricity sensing and cold lighting source. With the functions of inputting data through softkey, presetting testing loading time, choosing Knoop testing or Vickers testing, adjusting light intensity, it is also able to display the length of indentation, hardness value, holding time and count of test on the LCD. This series Vickers hardness tester could install CCD device, monitor device and camera head based on customer’s requirement.

It is suitable to test thin specimen, component after surface diffusion coating treatment and suitable to test the Knoop value and micro Vickers values of fragile materials, such as agate, glass, ceramic, which is as an ideal instrument widely used on the area of R&D institution, college, manufacturing enterprises and testing organization.

Model	HVS-5		HVS-10			HVS-30		HVS-50
Test Load(N)	2.942/4.903 9.807/19.61/24.52 29.42/49.03		4.903/9.807 19.61/24.52/29.42 49.03/98.07			4.903/9.807/19.61 24.52/29.42/49.03 98.07/196.1/294.2		9.807/19.61/24.52 29.42/49.03/98.07 196.1/294.2/490.3
Test Load(Kgf)	0.3 / 0.5 1 /2 / 2.5 /3 / 5		0.3 /0.5 /1 /2 2.5/ 3 / 5 / 10			0.5/ 1 / 2 / 2.5 3 / 5 /10 / 20 /30		1/ 2 / 2.5 / 3 5 / 10 / 20 /30 /50
Carriage control	Auto Automatic loading, holding-up and unloading
Load holding time	0~60 second
Magnification of microscope	200X, 400X	100X, 400X			100X,400X		100X,200X
Measuring microscope Min. measuring unit	0.0625um						0.125um
Testing field	1HV~2967HV
Lens/indenter switch	With hand Turret
Dimension of XY table	100X100mm			no
Stroke of XY table	25X25mm			no
Max. height of specimen	170mm
Max. depth of specimen	130mm
Light Source	Cold Light Source
Power	110V/220V, 50/60HZ
Objective	10X, 20X and 40X can be selected according to user’s requirement
Main Standard accessories	XY test table			Large test table;“V” shape test table;
	10X Digital Micro lens ; Lever ; Adjustable screw; Vickers hardness block RS232 Cable, Mini Printer
Option accessories	Motorized Turret
Dimension	535mmX225mmX580mm
Weight	Gross weight:60KG;Net Weight: 50KG
