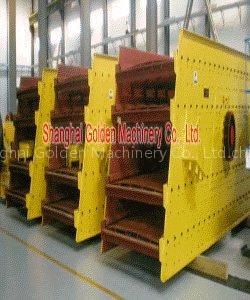

Vibration Screen 3YA2460

Applicability

The vibration screen is a kind of new many layers,efficient vibration screen,and it moves like a adjusts the amplitude by tube shape violent vibration screen of eccentric shaft and eccentric blocks,it has long flowing line,many screening specifications,is a special designed for grading and screening materialks in the fllowing fields:minerals,upgrade,building materialsand chemical industry smelting and so has features fo reasonable structure,strong violent vibration force,high screening efficiency,small vibrating noises,firm and durable construction,convenlent, maintenance and safe series vibrating screen has features of adjusted strength,long flowing line,many layes screening classification,clearly every size screen,high screening efficiency.

Features and benefites

1.Ring connection,advance structure and wear well.2.Adopt tyre shaft coupling,flexible connection and running stable.3.Adopt high strength bolt between sieve beams and screen box,simple structure and easy maintenance.4.Advance structure,with the eccenttric piece as exciting force,strong exciting force,low power consumption and small noises.5.Adopt small amplitude,high frequency,big dip structure,high screening efficiency and big treatment capacity.6.This vibration screen adopt big gap shaft,low noises,long service time and easy maintenance.

Structural features

This vibration screen consists of screen box,sceen mesh,vibrater,spring and frame. .It adjusts the amplitude by tube shape violent vibration screen of eccentric shaft and eccentric blocks,and the vibrater on the side plate of the screen box,drived by the motor through a V-belt.forced the screen box to side plate of the screen frame is made of high quality steel plate,the side plate,beam and the vibration exciter be connocted by the high strength screw bolt or the ring the screen frame is seat adjustment of the screen angle is drived by the height of the spring plate,Generally speaking,the motor in the right side of the sieve,other than in the left without a special requirement,our will provide the vibration screens in this way.
