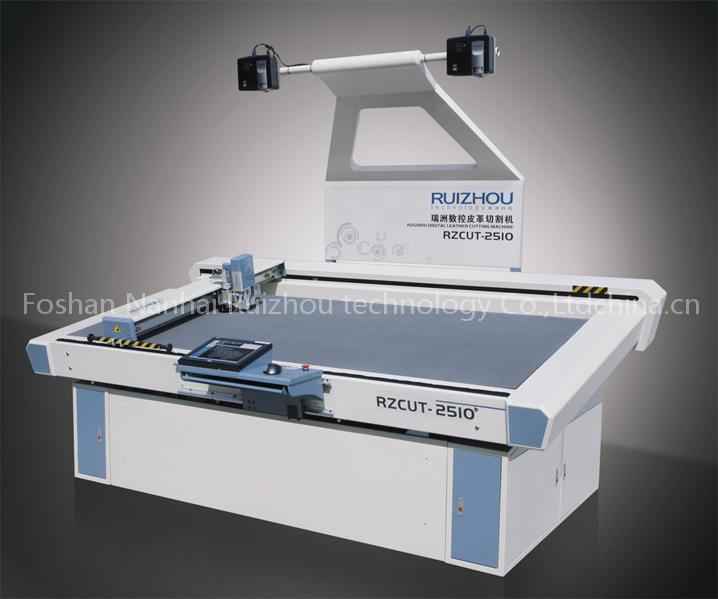

Vibrating knife Leather Cutting Machine

Believe it or not? Why not just take a try? Ruizhou Digital Cutting System, a professional digital cutter. It's a perfect combination of technique and technology. With this machine, you can conduct rapid nesting and efficient cutting operation, whilst saving time, manpower and material.

It works for a wide range of material, like genuine leather and many other kinds of flexible material. Product Advantages It adopts vibrating knife cutting technology, without having to forge die cutter, which saves the cost and the time on making die cutter, management and storage of die cutter during the process of production.

It enables you to grow out of the traditional technique of manual cutting forever. And it completely broke through the bottleneck that the enterprises rely on skilled workers and enable the enterprise to take the lead to enter the non-die cutter digital processing era. It features multi-purpose tool head, highly integrating multiple sets of processing tools.

It can carry out interactive cutting, punching, drawing in a single period of running time, providing a workflow of production.

It can work out highly-challenged and complex patterns which the die cutter can not realize, thereby extends the designing space of the designer dramatically, creating new-style patterns which can’t be imitated by handwork and making your patterns more attractive, thus reach the level that the buzz word "creation can go as far as your imagination can reach” communicates.

It can effectively identify flaws on leather by using the projector or camera to capture leather contour.

And the user can adjust the cutting direction as he like in accordance with the texture of natural leather material, so as to increase the output of finished-products and reduce material loss; and eventually increase the effective rate of utilization of the materials.

All operations are computerized by using computer to simulate the operation process exactly, which rules out the interference from the factors of the workers’ mood, knowledge, tiredness and other personal factors happened in traditional cutting, thus avoid hidden waste and increase the utilization rate of the materials.

The user can make timely correction to the patterns, which avoid investing the time on developing and making samples, and meet the fast-changing market demands through quick sample making and error correction.

You are supposed to achieve 2-3 days of time advantage over your competitors in terms of correction of the same kind of samples, thus helping you quickly seize the market opportunities.

Technical Parameter Model RZCUT-1410 RZCUT-2510 Cutting Area 1400*1000mm 2500*1000mm Cutting Material Natural Leather, Artificial Leather, Synthetic Materials, Cardboard Working Performance Cutting Speed: 1-1000mm/s Material Clearance: ≥1mm Cutting thickness: 0.5-6mm Acceleration: 0.05m/s2 Transmission Interface Standard Serial Interface, Parallel Port Command System Language of HP-GL and GP-GL Power Consumption Host AC220V±10%,50HZ Vacuum Air-pump 5.5KW,AC380V±10%,50HZ 9KW,AC380V±10%,50HZ Air compressor 1.5KW,AC220V±10%,50HZ Hold-down Method Vacuum Suction Control System Ruizhou Digital Leather Cutting System Projector Single Double Tool Head The cutting module, the dual Punching module and pen module, controlled by Servo Motor Cutting Tool Blade: rotating blade, vibration blade (optional); Punch tool: diameter 1-5 mm; Pen Vacuum Plate Vacuum based on Cells
