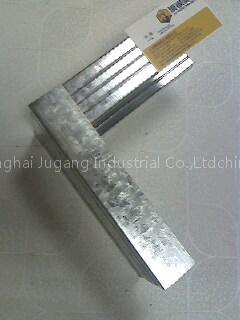

Verticle keel is a Construction & Real Estate product. Key specs — Origin: China.
Product Description
Generation of grooved & rugged galvanized steel keel
2. We have passed the national authority prove,Our light steel joist compared the same material , the strength improved 28.5%
Gang Steel Keel is patented patented No. is ZL2007 3 30077666.8 & ZL2007 3 0077667.2
surface content of galvanized zinc is over 100g/m2.
order special size no need to pay the extral fees.
Our Spec. of drywall studs /metal stud/drywall metal tracks
Name | Spec. | Thickness | Remark |
Furring Channel | 50X19MM | 0.4 , 0.45 , 0.5mm | New Generation grooved & Ruggled products which Zinc Coating over 100g/sqm |
Main Channel | 38X12MM | 0.8 , 1.0 , 1.2mm | |
20X12MM | 0.6 , 0.8 mm | ||
50X15MM | 1.0 , 1.1 , 1.2mm | ||
Wall angle | 20X20 | 0.4 , 0.6 mm | |
Studs | 50X50 | 0.6 , 0.7 , 0.8 mm | |
75X45MM | 0.6 , 0.7 , 0.8 , 1.0 , 1.5mm | ||
100X45MM | 0.6 , 0.7 , 0.8 , 1.0 , 1.5mm | ||
150X45MM | 0.8 , 1.0 , 1.5mm | ||
Tracks | 50X38 | 0.6 , 0.7 , 0.8 mm | |
75X35MM | 0.6 , 0.7 , 0.8 , 1.0 mm | ||
100X35MM | 0.6 , 0.7 , 0.8 , 1.0 mm | ||
150X40MM | 0.8 , 1.0 , 1.5mm |
