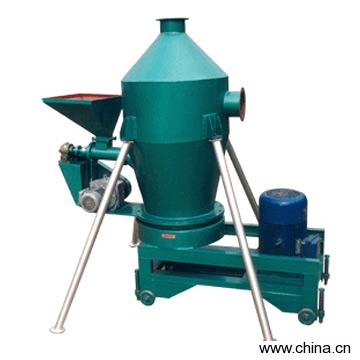

Vertical Shaft Sieve-Free Fine Pulverizer

Model No.:LDJ Product Origin:China Brand Name: Price Terms: Payment Terms:T/T Certification: Description:LDJ series is non-riddle wind separation vertical shaft fine pulverizer.

Its wearing parts are made of high quality hard alloy and have high abrasion resistance, thus this pulverizer overcomes the defect that the wearing parts are easy to be worn out and need to be replaced frequently.

When the materials are conveyed to the inner compartment of the grading cylinder, they are fiercely impacted against the milling disc accompanied with the high speed rotation of rotors and crushed.

The crushed materials are conveyed to the grading chamber along the outside of the inner compartment of the grading cylinder by the airflow, during this process, by controlling the speed of airflow the fine materials are sucked out of the cylinder and conveyed into the material collector, the unqualified materials are automatically conveyed back to the inner compartment of the grading cylinder and re-pulverized.

This equipment is widely used in pulverization in metallurgical, chemical, ceramic and nonmetal mining industries.
