Listing ID#10096167
ModelVertical Injection Machine
CategoryOther Plastic & Rubber Machinery

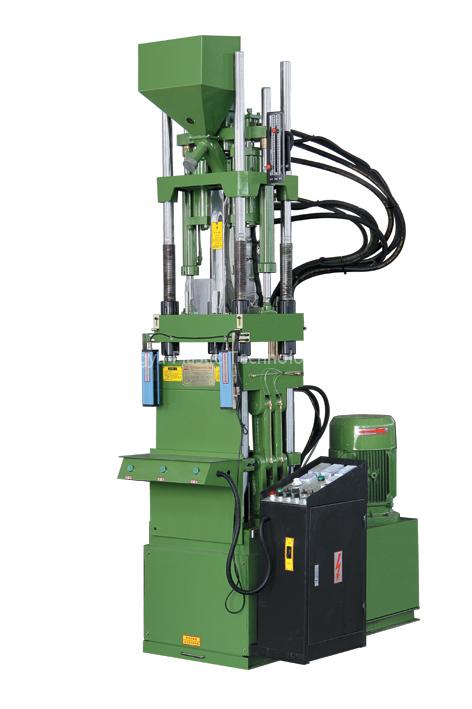

Vertical Injection Machine
Specifications
- Brand
- Shandong Tongya Plastic Technology Co LTD
- Origin
- China
- Price Term
- FOB
Quick answer
Vertical Injection Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Shandong Tongya Plastic Technology Co LTD; Origin: China; Price Term: FOB.
Product Description
| 　 | 　 | 　 | 　 | 　 |
| Injection Unit | Unit | TY-2S | ||
| Screw Diameter | mm | 22 | 25 | 28 |
| Injection Pressure | kg/cm2 | 1715 | 1322 | 1098 |
| Theoretical Shot Volume | cm3 | 31 | 38 | 49 |
| Max. Shot Weight | g/OZ | 29/1 | 35/1.2 | 45/1.5 |
| Injection Rate | cm3/sec | 20 | 24 | 30 |
| Temperature Control | ZONE | 2 | ||
| Material Hopper Capacity | L | 15 | ||
| Clamping Unit | 　 | 　 | ||
| Clamping Force | T | 15 | ||
| Opening Force | T | 7 | ||
| Distance between Tie Bar | MM | 250 | ||
| Min Mold Height | MM | 40/100 | ||
| Opening Stroke | MM | 160 | ||
| Distance | MM | 200/260 | ||
| Ejector Force | MM | 1.3 | ||
| Ejector Stroke | MM | 40 | ||
| Platen Size | MM | 440*250 | ||
| Slide Platen Stroke | MM | 　 | ||
| Hydraulic/Power System | 　 | 　 | ||
| Max.Hydraulic Pressure | kg/cm2 | 140 | ||
| Pump Output | L | 80 | ||
| Pump Motor Power | kw | 3 | ||
| Barrel Heating Power | kw | 2.2 | ||
| Other | 　 | 　 | ||
| Machine Weight | T | 0.5/0.55 | ||
| Machine Size | M | 1.4*0.85*2.2 | ||
