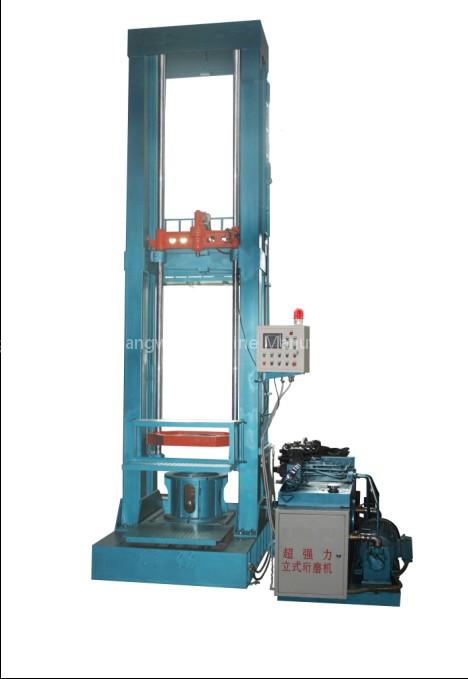

Vertical Honing Machine is a Business Services product. Key specs — Origin: China; Price Term: FOB.
Product Description
We specialize in HM series of new vertical CNC honing machine with high-precision, high efficiency, wide applicability, the price is reasonable, simple to operate with less area. To use of the HM series vertical honing machine can make you reach a good dimensional accuracy, surface finish, roundness, straightness, improve your processing efficiency and reduce your total cost of production so that it can improve you competitive in this line.
HM series of new CNC vertical honing machine is one of the most advanced machine .Full load of the HM series of vertical deep hole honing machine is designed for speed and accuracy designed, high efficiency, the application of long run is your best choice.
HM Series CNC vertical honing machine deep hole Features:
1. It is used in hydraulic and pneumatic, aviation, aerospace, automotive, motorcycle industry in the hole, such as precision machining field.
| Range Hoing Dia. | 30-500mm |
| Speed of Spindle Swing | 960rpm |
| Max. Length of Workpiece | 3000mm |
| speed of grinding head | 25-35m/min |
| reciprocating speed | 5-25m/min |
| Motor for cooling system | 0.37KW |
| Precision | roundness <0.02, roughness 0.04 |
| cooler | R350L |
| Rated sysytem pressure | 16Mpa |
| Capacity of Oil Pump | 47L/min |
| Motor of oil pump | 18.5KW |
| Height of Machine | 7635mm |
| Size of Workable | 840x840mm |
| Valid size of work Table | 700*800mm |
| Storke of workTable Moving | 600mm |
| dimesion size | L1885mm*W1645mm*7635mm |
| Gross weight | 6800kgs |
