Vertical Etching Machine
Specifications
- Brand
- Golden Eagle
- Origin
- China
- MOQ
- 1 set
- Packaging
- wooden export package
- Price Term
- EX-Work
- Payment Term
- T/T
- Supply Ability
- 25 sets for delivery
- Delivery Time
- 25 days
- Loading Ports
- Tianjin
Vertical Etching Machine is a Metal & Metallurgy Machinery product. Key specs — Brand: Golden Eagle; Origin: China; MOQ: 1 set; Packaging: wooden export package.
Product Description

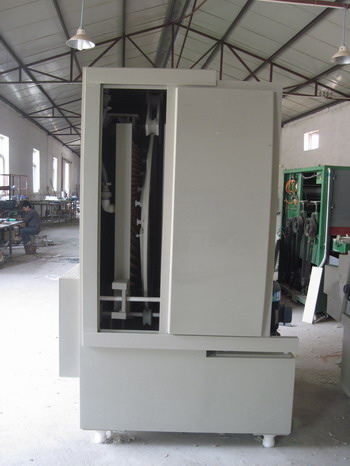

Vertical Etching Machine
Main Parameters: Model number: LS650 Power: 7.5KW/380V/50HZ Etching area: 550*550mm Machining thickness 0.01~1mm Tolerance: 0.01mm Working Temperature: 0~65℃ Appearance: 1800*1650*2460mm Weight: 650KG
Features: 1. This Vertical etching machine is a photochemical etching equipments 2.The spray structure has been improved on the basis of the common swing etching machine, the spray is more uniform and the pressure is stronger.
3.The tolerance is just about 0.01mm,that can satisfy your high precise requirements 4.The machine has the advantage of automatically transmittal, carving and cutting with high precision, fast speed, and high productivity.
5.Simple and convenient operation and could work persistently for a long time 6.The machine is made of PP plate, which is heat-resistant, corrosion-resistant and strain-resistant. 7.Timely service, one year warranty, life-long maintenance 8.Provide free training for customers in any places.
9.Non-standard sizes can be customized according to different business requirements 10Environmental friendly
Applications: It can be used to machining SMT, Grating, encoder masks and others high precision workpieces.
