Listing ID#10220582
ModelKLC-VCB
CategoryAir Conditioning Systems
Quick answer

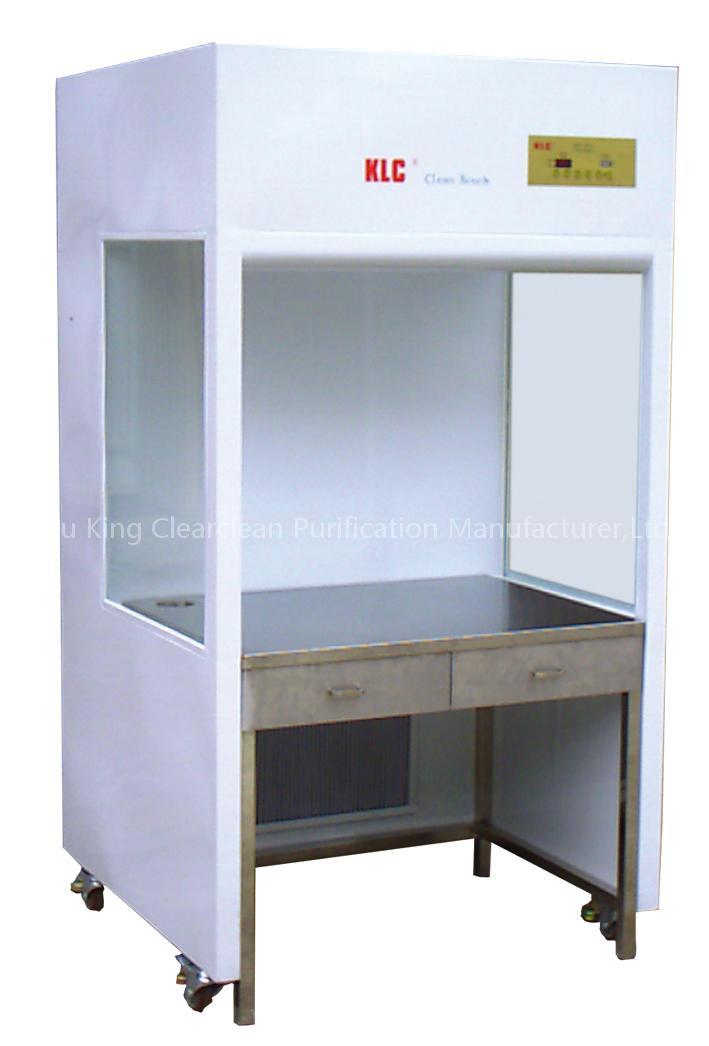

Vertical Clean bench is a Air Conditioning Systems product. Key specs — Brand: KLC; Origin: China.
Product Description
| Verticle Clean Bench | |||
| KLC series mini-type level clean bench, It is used for the partial high clean requirement in workshop and lab. | |||
| Clean bench | |||
| For many precision instruments, photoelectricity industry and other occasion, they require the super clean environment and micro-vibration. Micro-vibration and cleanliness seem contradictory but KLC devoted to researching and developing the clean bench without vibration, The table-board is separated from power segment and combine the equipment box perfectly,which avoid cleanliness failure by air leakage and the defect by vibration. We can achieve class 10 purification rank for this type clean bench by customer requirement. | |||
| Item | Clean beach with vertical | small clean bench with | Big clean bench with |
| vertical air for 1person | vertical air for 2person | vertical air for 2 person | |
| External size(W*D*H) | 960*780*1500 | 1200*820*1500 | 1500*900*1500 |
| Internal size(W*D*H) | 940*600*600 | 1180*600*600 | 1480*600*600 |
| purification rank | Class 100 | ||
| Rating air flow | 1200m3/h | 1800m3/h | 2300m3/h |
| average wind speed | 0.3-0.6m/s | ||
| filtration efficiency | More than 99.99% 0.3um H13-H14 | ||
| intensity of illumination | >=300lx | ||
| Power | 280W | 405W | 490W |
| Noise | <=65dB | <=65dB | <=65dB |
| power supply | 220V/50Hz | ||
| Fluorescent lamp's spec and quantity | 20W*1 | 30W*1 | 40W*1 |
| Material | The cabinet is cold rolled steel and powder coated or stainless steel. | ||
| The table-board is unpolished stainless steel. | |||
| Customized design is available. | |||
