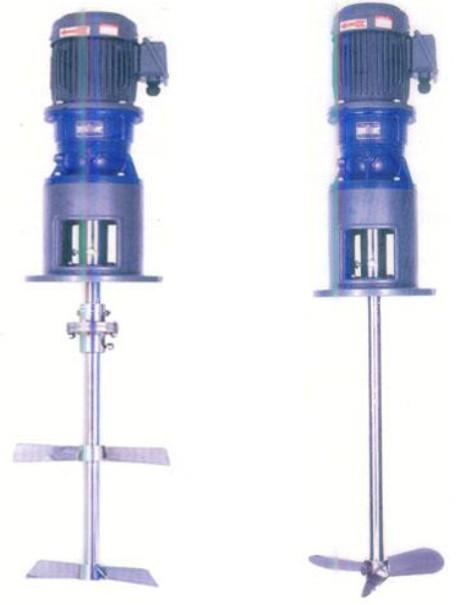

Vertical Agitator

NOSEN vertical agitator is composed to Taiwan brand planetary gear speed reducer,mounting base,pole shaft,propellers. Manufacturing vertical agitator following customers’ application situations.

Features:

* Electricity systems from 110V to 440V,50Hz or 60 Hz,1 or 3 phases

* Power from 0.25 hp to 25 hp

* Revolutions from 15 rpm to 1500 rpm

* Pole shaft diameter from 20 ~ 70 mm

* Propeller diameter from 100 mm ~ 1500 mm

Components Materials:

* Taiwan brand planetary gear speed reducer

* Mounting base: S45C

* Pole shaft: SS304 or SS316

* Propeller: SS304 or SS316

Application:

* Chemical industrial

* Food processing

* Agricalture
