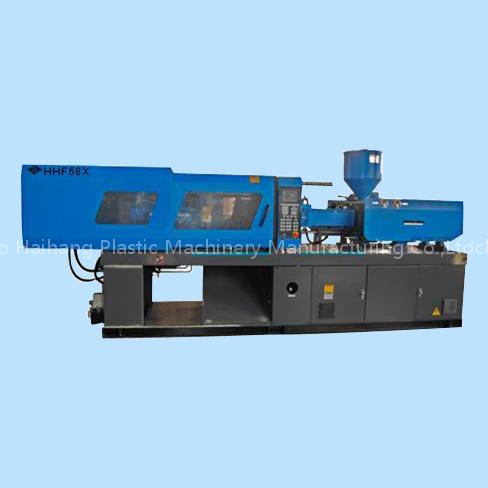

Variable Displacement Pump Injection Molding Machine
Specifications
- Origin
- China (Mainland)
Quick answer
Variable Displacement Pump Injection Molding Machine is a Business Services product. Key specs — Origin: China (Mainland).
Product Description
| ITEM | MODEL | UNIT | HHD68x | ||
| A | B | C | |||
| INJECTION UNIT | Screw Diameter | mm | 28 | 30 | 32 |
| Screw L/D Ratio | L/D | 24.6 | 23 | 21.6 | |
| Shot Size(Theoretical) | cm3 | 86 | 99 | 113 | |
| Injection Weight | g | 75 | 90 | 103 | |
| Injection Rate | g/s | 49 | 56 | 63 | |
| Plasticizing Capacity | g/s | 6.3 | 8.4 | 10.3 | |
| Injection Pressure | Mpa | 219 | 191 | 168 | |
| Screw Speed | rpm | 0-220 | |||
| CLAMPING UNIT | Clamp Tonnage | KN | 680 | ||
| Toggle Stroke | mm | 300 | |||
| Space Between Tie-Bars | mm | 310x310 | |||
| Height | mm | 330 | |||
| Height | mm | 120 | |||
| GENERAL | Ejector Stroke | mm | 80 | ||
| Ejector Tonnage | KN | 38 | |||
| Ejector Number | Piece | 5 | |||
| pressure | Mpa | 16 | |||
| Pump motor power | KW | 7.5 | |||
| Heater Power | KW | 6.15 | |||
| Machine Dimenshion(LxWxH) | m | 3.4x1.1x1.5 | |||
| Machine Weight | T | 2.6 | |||
| Oil Tank Capacity | L | 140 | |||
