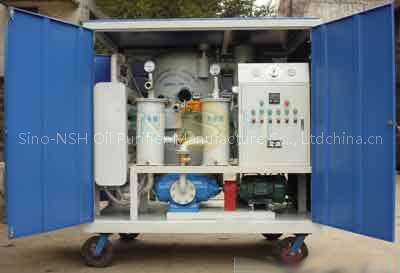

Vacuum Transformer Oil Purifier Systems

1 Purifying insulation oil.

2 Easy handling and maintenance. Online work available

3 Enhance the value of breakdown voltage of oil greatly.

4 Lower maintenance and replacement expenses.

5 High efficiency and effectiveness while small size, light weight, and low noise.

Description

It specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.

It is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate, matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.

Technical Specifications

Model type:VFD-30

Treatment Capacity:1800L/H

Vacuum Range:-0.092- -0.099MPa

Max Vacuum Range: less than 50 Pa

Working pressure:less than 0.2 MPa

Temperature:45-65 degrees Celsius

Water Content:less than 4 PPm

Gas Content:less than 0.1%

Breakdown Voltage:more than 75 Kv

Power Supply:50Hz , 380V(or as needed)

Working noise:less than 72 dB(A)

Heating power:30 KW

Total Power:33 Kw

Inlet / outlet Pipe Diameter: DN 25 Mm

Weight:350 Kgs

Size:1.5 x 1.1 x 1.75 M3

We also provide products of different capacities: from 3000 to 18,000L per Hour. If you have further need please feel free contact us.
