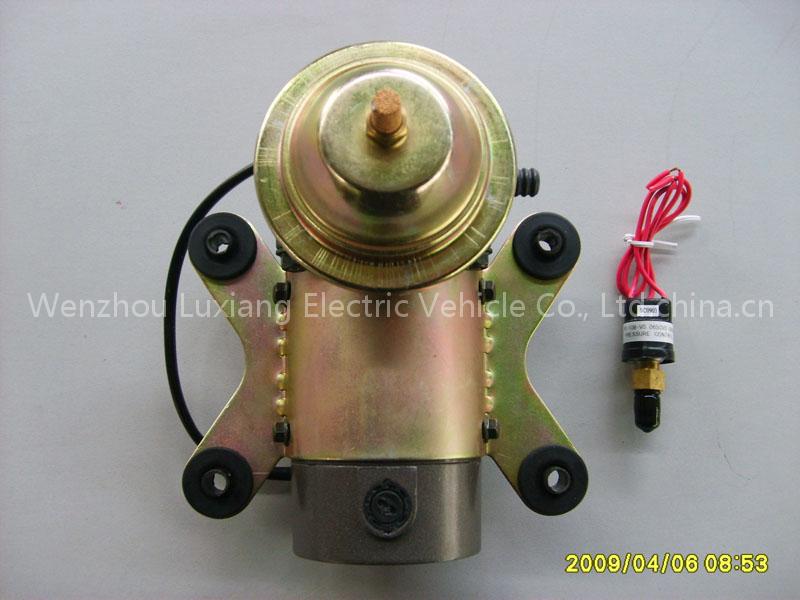

Vacuum Pumps for Electric Vehicle
Specifications
- Brand
- Kuvid
- Origin
- China (Mainland)
Vacuum Pumps for Electric Vehicle is a Pumps & Parts product. Key specs — Brand: Kuvid; Origin: China (Mainland).
Product Description
The electric vacuum pump supplies proper amount of vacuum to the brake system of electric vehicles. The electric vacuum pump is the first one suitable for varies of electric vehicles and hybrid-electric vehicles in China.
With the lubricating oil free, higher exhaust speed, long service time, low power and so types have low noise and vibration levels, hardly noticed when it engages.
The vacuum is controlled by a pressure-control Electrical CharacteristicsModel HDZKB-F1 12V Power 50WVoltage 12 VDC Flow Rate 35L/minSize 200×160×160mm Net Weight 2.5kgNoise < 60db Gross Weight 2.6kgMaximum Vacuum -0.08MPa PressureControl ON:-0.045MPaOFF:-0.065MPa±0.005MPaThe electric vacuum pump supplies supplemental vacuum to vacuum boosters for brake system of kinds of vehicles.
1. SUMMARYThe HUAHUA brand electric vacuum pump is the first one vacuum pump which is suitable for varies of EVs and HEVs in China. The pump is specially designed for supplying supplemental vacuum to kinds of brake boosters. With advantages of lubricating oil free, higher exhaust speed, long service time, low power consumption and so on.
The pump has low noise, vibration levels, and it is controlled by a pressure-control switch.2. PRODUCT MODELHDZKB-F1 ELECTRIC VACUUM PUMP (12VDC~72VDC)HDZKB-S108 ELECTRIC VACUUM PUMP (108VDC)HDZKB-S360 ELECTRIC VACUUM PUMP (360VDC)3. SPECIFICATION3.1. VOLTAGE: 12V, 24V, 48V, 60V, 72V, 108V, 360V DC3.2. WATTAGE:
