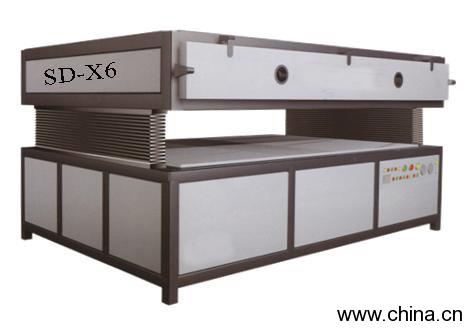

Vacuum Molding Machine

Model No.:SD-X6 Product Origin:China Brand Name:SignDepot, Weldon Price Terms:FOB, CIF, CFR Payment Terms:T/T, L/C Certification:CE Description:SD-X6Specifications (large: 3.4 x 2.2m)Size of sheet: 3,100 x 2,100mmSize of heating room: 3,100 x 2,100 x 225mmHeight of lift: 450~500mmPressure: 35kN~65kNHeating temperature: standard ~300°CVolume of vacuum: 0.5cbmPressure: 0~0.08MPaHeating power: 5~27kWVoltage: 380V or 220V switchSize of machine: 3,400 x 2,200 x 1,800mm (down 1,300mm) Specifications (medium: 1.45 x 2.65m)Size of sheet: 1,350 x 2,650mmSize of heating room: 1,350 x 2,650 x 225mmHeight of lift: 450~500mmPressure: 35kN~65kNHeating temperature: standard ~300°CVolume of vacuum: 0.5cbmPressure: 0~0.08MPaHeating power: 5~27kWVoltage: 380V or 220V switchSize of machine: 1,350 x 2,650 x 1,800mm (down 1,300mm)SD-X4Specifications (large: 2.3 x 3.4m)Weight of machine: large size machine: 3.2MTHeight of lift: large size: 450mmMax. heating power: 13.5kW~27kWSpecification of machine: 2.3m x 3.3mHeating temperature: standard 180°C~200°C (~300°C can be adjusted)Voltage: 50Hz 380VSpecifications (middle: 1.6 x 2.6m)Weight of machine: large size machine: 2.2MTHeight of lift: large size: 450mmMax. heating power: 13.5kW~27kWSpecification of machine: 1.6m x 2.6mHeating temperature: standard 180°C~200°C (~300°C can be adjusted)Voltage: 50Hz 380VPressure: 5~16MTSpecifications (small: 1.35 x 1.65m)Weight of machine: large size machine: 1.6MTHeight of lift: large size: 450mmMax heating power: 13.5kW~27kWSpecification of machine: 1.35m x 1.65mHeating temperature: standard 180°C~200°C (~300°C can be adjusted)Voltage: 50Hz 380VPressure: 5~16MT
