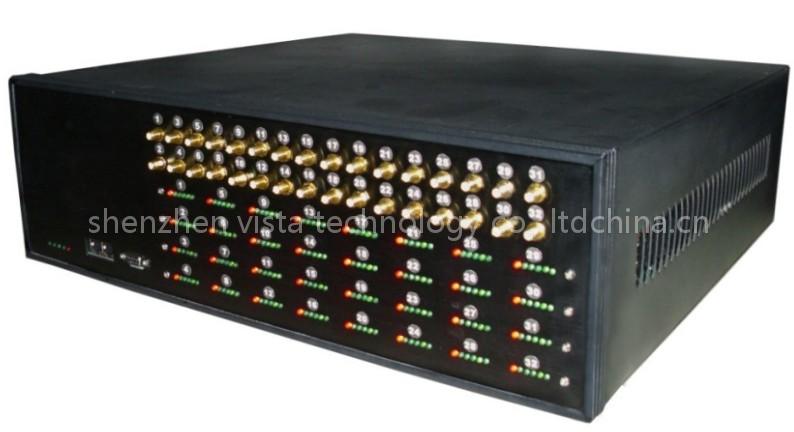

VOIP GSM gateway 16 port 64 sims

GO1664-16WAYS-64cards is a 16 channels VoIP GSM Gateway for call termination(VoIP to GSM and GSM to VoIP). It is SIP based and compatible with Asterisk. It can enable to make 16 calls simultaneously from IP phone to GSM networkand GSM network to IP phone.

1. Main Features

Support H.323, SIP (RFC3261) compliance

IVR Voice configuration

Built-in NAT/IP sharing function

Basic PBX function (Private branch exchange)

Concentrated Network Management Systems(NMS)

Peer-to-Peer mode (non-Gatekeeper)

Line hunting

16 RJ-11 FXS ports or 16 RJ-11 FXO ports

E.164 (Telephone Number Plan)

DTMF dialing

PPPoE connection

DTMF detection/generation

FSK and DTMF Caller ID

Remote configuration/reset via Telnet

LAN interface : two RJ-45 connector of 10/100 Base-T

Microsoft Netmeeting v3.0 compatible

Support static IP and DHCP

Built-in DHCP Server function

QoS by ToS (Type Of Service)

SNTP (Simple Network Time Protocol)

Bell signal

Polarity reversal

Antenna socket (FME)

IP usage switch

Working state indicator

Signal Strength indicator

2.The function of the GSM parts is as follows

(1) Supply two set extension to connect

(2) Incoming call display, and hide caller number(CLI)

(3) Set local code, IP access code and special number

(4) Set limiting to dial national long distance call, mobile

(5) Phone call and local call,set using IP or not

(6) Lock phone and telecom operator

(7) Lock card automatically, lock card with random PIN code or fixed PIN code.

(8) 16 ports with 64 SIM, it can be switch automatic.

(9) IMEI change

(10) Following me function, GSM to VoIP and VoIP to GSM

3. Technology Index

1). Frequency ranges: Quad-band GSM 850/1900/900/1800MHZ.

2). SIM Card:It support 3VG-SIM card.

3). Phone interface:supply RJ-11 Phone Interface

Hanging voltage:45VPicking off voltage:30mA/41MaDialing tone Frequency:450Hz

4). Antenna interface:Antenna amplifying >1.5DB

Sensitivity < -104DBM

Transmitting power<3W

5). Adapter interface

INPUT:AC 175~260VOUTPUT:+12V/1000MA

6). Serial communication interface:RS-232 full serial interface mode (with assign date transport line)

7). Operation Circumstance

Operation temperature:-10c ~ 60cStorage temperature:-20c~ 70c

Operation humidity:45% -95%Atmosphere pressure:86 -106Kpa

Environment noise:<60DBTransmitting Power: 2W

Sensitivity: <-104dbmAntenna Amplifying: >1.5db

Dialing frequency: 450HzHanging voltage: 45V

Picking current: 30mA/41mA

4.package list:

GSM VoIP Gateway (mainframe)1pcs

850/1900/1800/900MHz antenna(FME)1pcs

Software For IMEI change1pcs

Users Guide1pcs

+12Vpower supply1pcs

Certificate1pcs

Data cable1pcs

Network cable1pcs
