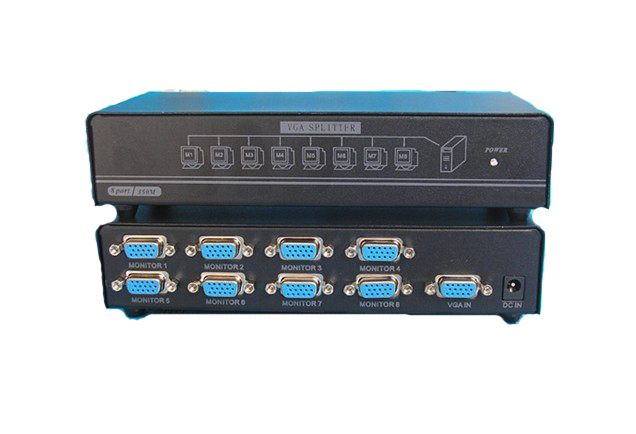

VGA Splitter 1 input/8 output
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
VGA Splitter 1 input/8 output is a Electronic Accessories & Supplies product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
Model: GIEL-V08 VGA Splitter 1 input/8 output Input:1 port X High Density DB15(Female) Output:8 ports X High Density DB15(Female) Features: --- Supports ULTRA HIGH 200 MHz video (-3db) bandwidth. --- Enhances video signals for distance up to 65 meters (213 feet) --- The video splitter can be daisy chainned. --- All metal casing and small form factor. --- Supports 1600X1200 at 75Hz. --- Ideal for remote monitoring, presentations, educational facilities, test bench facilities, data centers, stock quotes, restaurants, etc. --- Allows one computer to provide simultaneous displays to 8 different monitors.
Specifications: --- Cable Distance: 65 meters (213 feet) maximum. --- Signal Type: VGA, SVGA, XGA, Multi sync. --- Operating Temperature: 32-104 degrees Fahrenheit (0 - 40 degrees Celsius) --- Storage Temperature: 23-158 degrees Fahrenheit (-5 - 70 degrees Celsius) --- Humidity: 0-80%RH, Non condensing --- Housing: Metal --- DC 9V Power Consumsion (Maximum): 0.85W --- Max.
Resolution: 1600X1200 75 Hz --- Bandwidth (-3db): 200 MHz --- External Dimensions:195X83X45mm --- Weight:600G Package Contents: --- VGA(Video) Splitter: 1 piece --- Power Adapter : 1 piece --- User's Manual: 1 piece
