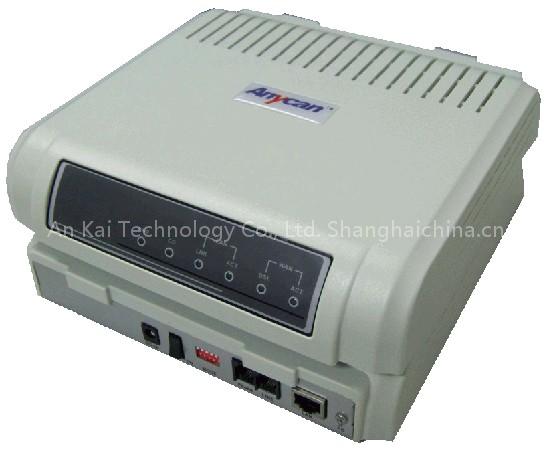

VDSL/SHDSL/SDSL is a Telecommunications product. Key specs — Brand: ANYCAN; Origin: shanghai ankai.
Product Description
CCPAM2300 SDSL 1.
Specification -Line Interface -Line Port : RJ-11, 1Port,2 Wire -Data Rate : 256Kbps-2320Kbps(Data speed setting as dip switch) -Data distance : 6Km-2.5km(256Kbps-2320Kbps),0.4mm Line 6.8km(256Kbps-2320Kbps),0.5mm Line -Ethernet Port : IEEE 802.3 10Base-T, RJ-45 connector, 1Port -Phone Interface: RJ-11 , 1Port, Phone Line/Voice Line -Line Vode: 2B1Q modulation -LED Indicator: PWR,LNK,ACT,CO,DSL,ACT -Envirnment -Operation Temperature: 0°C to 60°C -Storage Temperature: -10°C to 70°C -Operation Humidty: 0% to 90% , -Storage Humidity: 0% to 90% -External Power : 220VAC/DC9V/1000mA, 50-60Hz -Dimension: 208mm(W)*45mm(H)*211mm(D) LED Indicator Function 1) Power: Power ON/OFF 2)CO:Master or Slave Indicator3)LNK: Ethernet Network link Indicator4)ACT: Ethernet Data Transmit Receive indicato 5)DSL: WAN line Interface link Indicator6)ACT:DSL Data Transmit Receive indicator Rear side 1) Power: Power Socket 2) Line : DSL WAN Line interface 3) LAN: HUB and Network Line Connector 4) Voice and PSTN Line Connection
