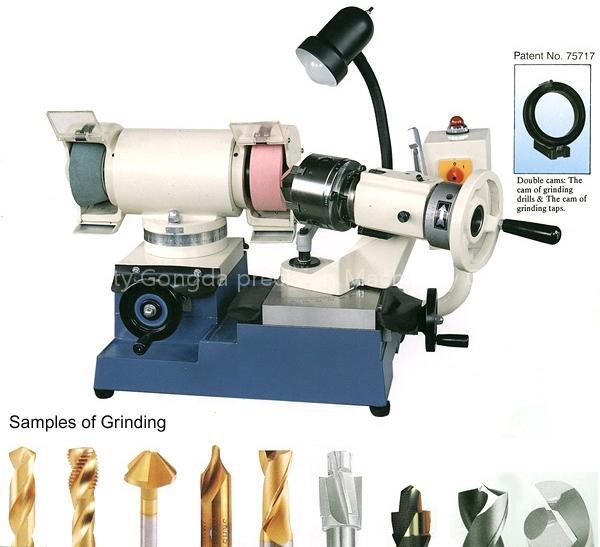

Universal drill&cutter grinder

1.Grinding capacity: Dia.2mm~ Dia.32mm (straight or taper shank) drills, step drills, NC drills, taps, counter sink drills, end mill lips, round bars.
2.Double wheels. Just to rotate the motor when want to grind the cutters of different materials. It could increase the safety and save the time of changing & repairing the grinding wheel.
3.Adopts precision 6 jaw self-centering chuck.
up and grinding is accurate and fast.

Specifications:

• Longitudinal travel of table: 120mm
• Cross travel of saddle: 135mm
• Rotary angle of wheel head: 360°
• Point angle: 90°~180°
• Size of wheel: 125 x 50 x 31.75mm
• Speed of wheel: 3,600 RPM
• Motor: 3/4 HP, 110V/220V/380V
• N.W./G.W.: 95kgs/120kgs
• Size of packing (L x W x H): 800 x 550 x 670mm
