Universal Wear Tester is a Health & Medical product. Key specs — Brand: GESTER; Origin: China.
Product Description

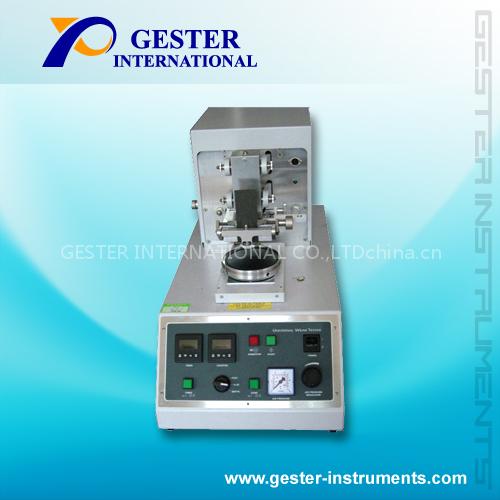

Universal Wear Tester (Stoll Quartermaster) GT-C15 Application Universal Wear Tester, To determines the wear and abrasion resistance of fabric used in clothing, footwear and industrials. Supplied with surface abrasion head (inflated diaphragm method and flex abrasion head as well as necessary weights and initial supply of abradents.
Universal wear tester fitted with built-in timer and mechanical cycle counter repeatable and reproducible testing is ensured by consistent motor speed providing 120 double strokes per minute of 25mm (1in) stroke length.
Improved air injection system for more uniform inflation of the diaphragm used in surface abrasion testing, and a superior clamping mechanism for repeatable specimen tensioning. Model GT-C15 Universal Wear Tester (Stoll Quartermaster) Model GT-C15
Speed 120rmp
Measuring Range 25mm
Counter Display LCD
Dimensions 480 x 360 x 715mm( L x W x H )
Weight 43kg
Standards ASTM D3514 D3885 D3886 AATCC 119 120
