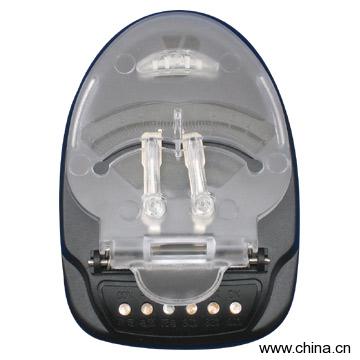

Universal Mobile Charger is a Battery Chargers product. Key specs — Origin: China (Mainland).
Product Description
Model No.:NB-16 Product Origin:China Brand Name:Nan Bang Price Terms:FOB, CNF, CIF Payment Terms:T/T, L/C at sight Certification:CE Description:Features: 1) The charger can identify battery polarity automatically, need not adjust the polarity 2) Indicating the battery residual capacity3) Adopt the advanced switching power supply circuit, highly efficient, wide voltage orientation scope4) Adopt the advanced control chip, stop charge automatically when finishing charge, can protect batteries better Specifications: 1) Input: AC 110 - 220V, 50 - 60Hz, =50mA2) Output: DC 4.2V, 250mA3) Suitable for batteries of 250 – 2,000mAhInstructions:First adjust the charger hardware connector space according to the distance of battery positive pole plate and negative pole plate, and make sure the battery and hardware connector in correct connection.
If the battery is with a down-lead, please insert the down-lead connector to the opposite hole. If the green LED "CON" is on, it means connection is ok.Charge confirmation: After connection with the battery well, please connect the charger to the AC power source, it indicates charge when the red LED "CH" is on.
(Notice: After connecting to the AC power source, the full charge LED "OK" is on, but the full charge red LED "CH" is off. Usually it is because the connection of battery and charger is not correct.
Then please repeat the first step, till "CH" becomes bright, indicating the normal charge situation.) Finished charge:When the green LED "30%", "60%" and red LED "CH" are off completely, the green LED "100%" becomes bright. It means finished charge, and batteries can be taken off for use.
(Keep on charge batteries for 0.5 - 2 hours, and the batteries will have more capacity, but it does not influence the battery life.)Notices:1) Indoor use only, and please use the firm AC power source jack2) Avoid the high temperature, heat and direct sunshine when working 3) Please cut off the AC power source when not use4) If there is a little heat on the charger and battery surface when working, it is a normal situation5) For the rechargeable battery use only, and forbidden to use for un-rechargeable batteries
