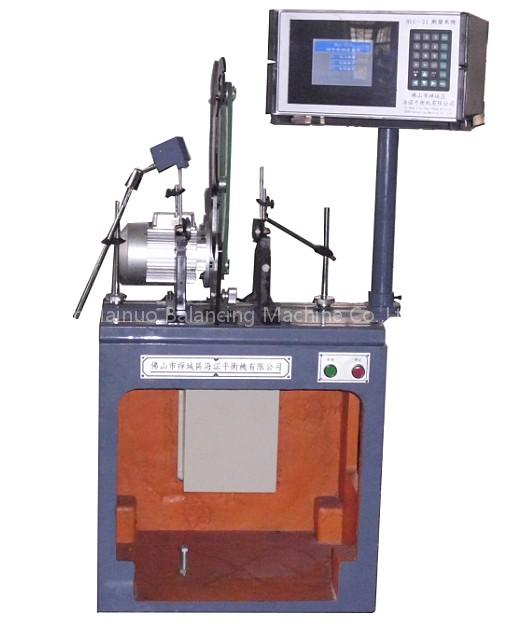

Universal Horizontal Balancing Machine
Specifications
- Brand
- Hainuo Balancing Machine
- Origin
- Guangdong
- Price Term
- FOB
Universal Horizontal Balancing Machine is a Health & Medical product. Key specs — Brand: Hainuo Balancing Machine; Origin: Guangdong; Price Term: FOB.
Product Description
application
2.easily exchange rotor
3.visual display
4.stable performance
5. high efficiency
safety
This machine is mainly applied in the fields of automobile repair plant, automobile factory, ventilation system equipment factory ,air blower factory and windly used for spindles of machine tools, ceramic machiner rollers, textile machinery, rubber rollers and also kinds of medium-sized motor rollers ect.
Horizontal Machines,Belt-drive:
Model designations:
Horizontal Belt-drive -kg weight capacity
Example: HB-100 =Horizontal machine, Belt-drive, 10~100 Kg weight capacity.
Model | Capacity | Rotor Ø max | Distance between Supports | Journal Ø range | Balancing Speed rpm | Drive Performance (kw) | |||
HB-1.6 | 0.16~1.6 | 150 | 30~250 | 3~30 | 400~5,000 | 0.04 | |||
HB-5 | 0.5~5 | 250 | 50~600 | 3~30 | 300~5,000 | 0.12 | |||
HB-16 | 1.6~16 | 400 | 80~600 | 8~40 | 300~5,000 | 0.37 | |||
HB-50 | 5~50 | 850 | 150~1,000 | 8~70 | 300~5,000 | 1.5 | |||
HB-100 | 8~100 | 850 | 150~1,500 | 8~100 | 300~5,000 | 1.5 | |||
HB-160 | 10~160 | 1,080 | 200~1,500/2,400 | 10~180 | 300~2,500 | 2.4/3 | |||
HB-300 | 16~300 | 1,200 | 200~1,500/2,400 | 10~180 | 300~2,500 | optional | |||
HB-500 | 20~500 | 1,450 | 300~1,500/2,400 | 15~240 | 300~2,500 | optional | |||
HB-1000 | 30~1,000 | 1,600 | 400~3,600 | 20~290 | 300~1,450 | optional | |||
HB-2000 | 50~2,000 | 2,000 | 500~3,600 | 30~350 | 300~1,450 | optional | |||
HB-3500 | 80~3,500 | 2,600 | 700~3,600 | 50~500 | 300~900 | optional | |||
The more technical parameters are in the following.
Rotor data/Machine type | HB-16 |
Power supply | 220V 50Hz |
The way of supporting | Hard bearing |
Display mode | LCD |
Minimun achieveable residual unbalance(MARU)(/>
|
