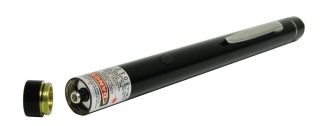

United States Visual Fault Locator

Specifications: Optimized for Singlemode and Multimode fiber testing. Detects breaks, leaks, faulty connector and ends in Fiber Connection. Two models:2.5mm Ferrule and 1.25 Ferrule (Accepts all connectors FC/SC/ST/E2000, LC) Main Features: For locating breaks and bends in fibers and identifying connectors at the panel.

650-nm visible laser diode Can be operated in continuous or pulse modes for clear noticeable results. One green LED indicator shows the operating mode. Power switch on the end for battery on/off. Push button operation CW/Mod. (2.5 Hz frequency)/pause. Clip pocket-size pen design. Protective cap for extra protection.

Battery low indicator Specification: Central Wavelength 650 +/- 10 nm Output Power 1mW into Single-mode fiber Spectral Width Transmission CW or 2.5 Hz pulse Batteries 2 x AAA Alkaline batteries Operating Temp.0 - 50 C Detecion Distance Dimension/Weigth 13.5 mm X 170 mm/88 g Light Source Class 3A laser diode
