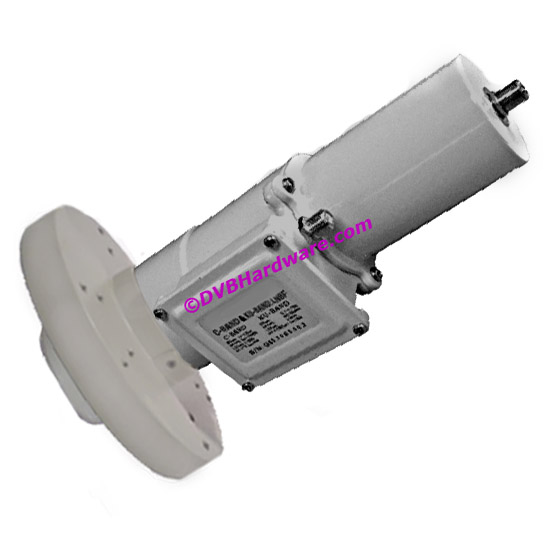

United States Gsl1c / Ku Lnbf PRO

Specifications: C-band lnbf ku-band lnbf Input frequency range 3.4 - 4.2ghz 10.7 - 12.7ghz Input reflector type prime focus prime focus F/d ratio 0.28~0.42 0.6 Conversion gain 65db(typ. ) 55db(typ. ) Gain flatness 1.0db/36mhz 4db over band 1db/54mhz Noise 17k 0.5db(typ. )cross pol. Isolation 20db(typ. ) 20db(min. ) Image rejection 50db(min. ) 40db(min. ) L.

O. Frequency 5150 MHz 9750/10600 MHz L. O. Stability 1.0mhz ~ +60 ~ +60 L. O.

Phase noise -60dbc/hz(1khz offset) -50dbc/hz(1khz offset) -85dbc/hz(10khz offset) -75dbc/hz(10khz offset) -95dbc/hz(100khz offset) -95dbc/hz(100khz offset) Output frequency range 950 ~1750mhz Output power(at 1db gain compression) 0dbm(min. ) 0db(min. ) Return loss output 10db 8.0db(2.3:1) Output connector 75 f-type female 75 f-type female Polarization selection h:16~18v v:12~14.5v h:16~18v v:11~14v DC current consumption 100ma(max. ) 100ma(typ. ) 120ma(max. ) Operating temperature -40~+60 -40~+60
