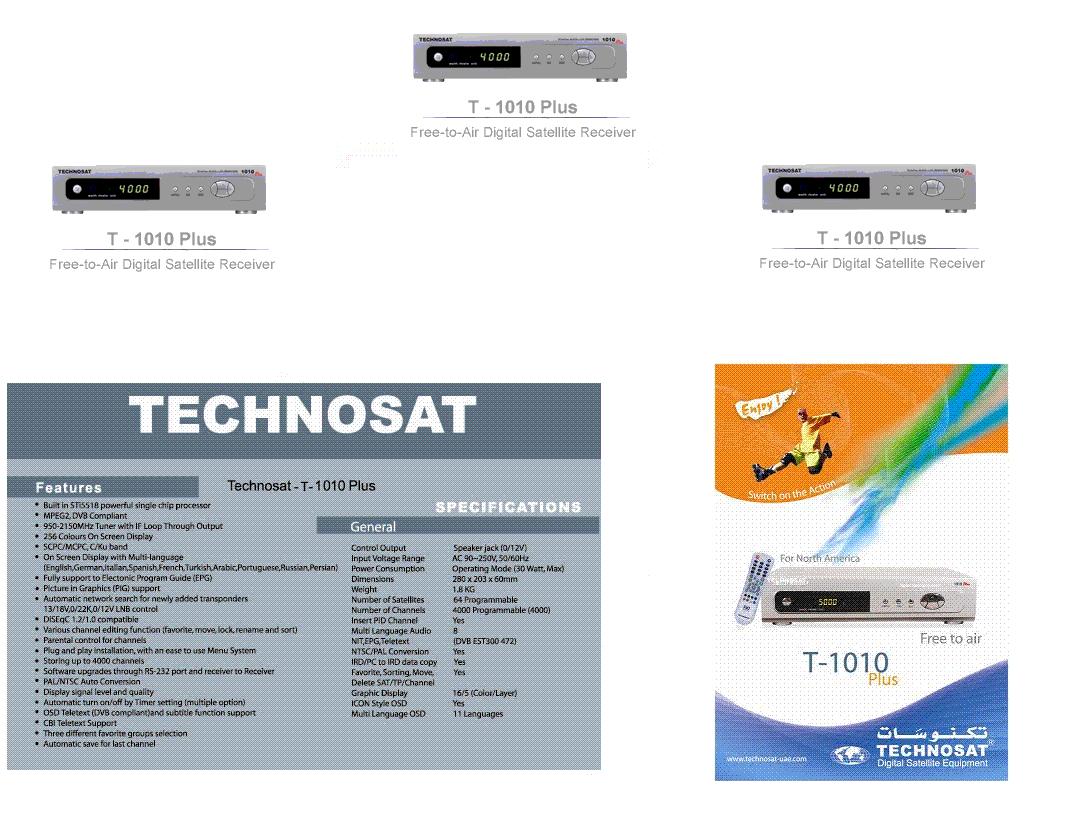

United Arab Emirates Technosat 1010 Satellite Receiver

Specifications: Features: Built in sti5518 powerful single chip processor Mpeg2, dvb compliant 950-2150mhz tuner with if loop through output 256 colours on screen display Scpc/mcpc, c/ku band On screen display with multi-language (english, german, italian, spanish, French, turkish, arabic, portuguese, Russian, persian) Fully support to electronic program guide( epg ) Picture in graphics(pig) support Automatic network search for newly added transponders 13/18v,0/22k,0/12v lnb control Diseqc 1.2/1.0 compatible Various channel editing function( favorite, move, lock, rename and sort) Parental control for channels Plug and play installation, with an ease to use menu system Storing up to 4,000 channels, Software upgrades through rs-232 port and receiver to receiver Pal/ntsc auto conversion Display signal level and quality Automatic turn on/off by timer setting(multiple options) Osd teletext(dvb compliant) and subtitle function support Vbi teletext support Three different favorite groups selection Automatic save for last channel.

Specifications: Lnb Frequency range:950-2150 MHz Frequency level: -25 to -65 dbm Diseqc version:1.2 22khz tone: Frequency:22 khz, amplitude:0.6 v p-p 0/12 v control:0/12 vdc Power supply: Horizontal:18v, vertical:14v(600ma max. ) Tuner Impedance:75 Input& loop output connector: F connector x 2(1 input,1 loop through output).

If bandwidth: Zero if Demodulator: Demodulation waveform: Qpsk Symbol rate:2 ~ 45 msps Fec decoder:1/2,2/3,3/4,5/6,7/8, auto
