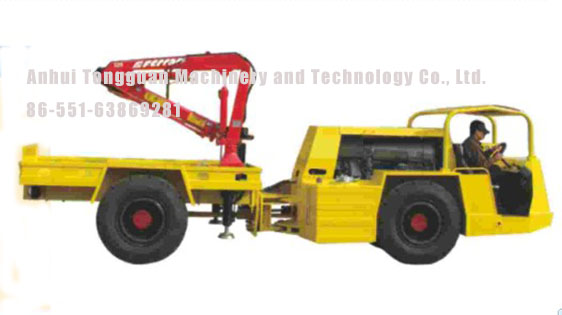

Underground Crane Trucks

Style:JY-5CLD-1 All Dimension:length/width/height6620*1800*2570（mm） device size:length/width/height2800*1800*170(mm) Max lifting power:14000Nm Turning Radius:Inner3800(mm)Outer5900(mm)

JY-5series of underground service vehicles have the same specification as below.

Main Features 1,Applied two-stage combustion with lower pollution.Equipped with air

cooling system,meatal catalytic purifier and muffler.Discharger

exhaust contains extremely low amount of harmful substance which is

far below the requirements of "GB 14761.5/6/7". 2,Working brakes are separately mounted on both of the two drive

axles.Braking system applied individually double-piped hydraulic

controlling. 3,Since the main power system,transmission components and hydraulic

components are from famous brand holding foreign manfacturers ,and the

other components are also hhigh--quality products from our finest

domstic manufacturers,our machine is greatly excellent and reliable in

performance.

Main configuration Diesel engine:Germany DEUTZ F6L912W Torque converter and shift transmission :US DANA 1201FT20321 Axle:US DANA F112 Twin gear pump:Italy sailami 2.5PB Valves:US Mico

Working condition: The mchine is suitablle for un-coal mine. Empty weight:6t Rate load:5t standard Bucket Capacity:3m2 maximum dumping height:1600mm minimum unload distance:1480mm Distance between wheels:1530+-40mm Steering Angel:+-10degree RotationAngel:+-40degree Grade ability:25% Turning radius:Inner 3800mm/Outer 5900mm Speed Gear1:4.8km/kh Gear2:10.0km/h Gear3:22.0km/h

We plan to help you meet your needs with our equipment, with our

distribution and product support system, and the continual

introduction and updating of products.
