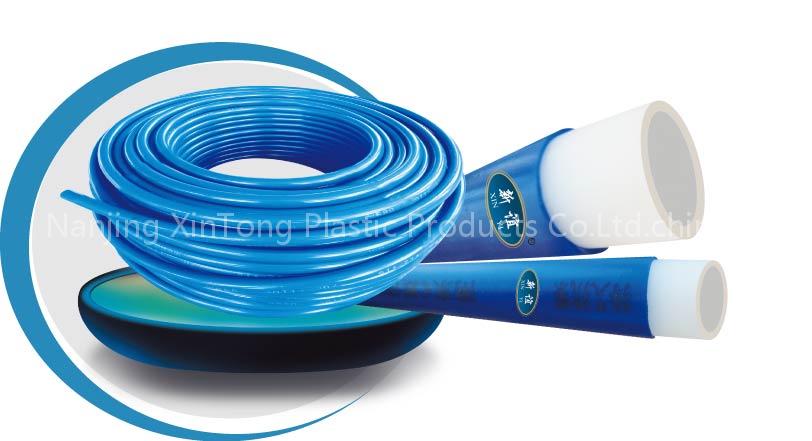

Under-Floor Heating Composite Pipe

Specification: CJ/T175-2002

Inside Φ12/16mm - wall thickness 2mm& outer layer 0.8mm

Inside Φ14/18mm - wall thickness 2mm& outer layer 0.8mm

Inside Φ16/20mm - wall thickness 2mm& outer layer 0.8mm

Description:
1,Outer layer is aiming to avoid scratches during the installation & transportation,
which is not affect the heat transfer.

2, Good flexibility, some bending stress relaxed & no rebound

3, Light weight, easy transportation, installation, construction

4, Good low temperature properties, suitable for winter construction

5, Good chemical resistance& environmental adaptability, durable for long

6, Long service life of 50 years in 70 ℃ & working pressure≤0.4MPa

7, Without any toxic additives & environmentally friendly products, recyclable

8, The pipe wall is smooth, low resistance without fouling, clean.

9, Mechanical connection & reliable, non-leakage
Appearance Color: Blue, Orange
Application: Under-floor heating, Hot and cold cycle system, other related, etc.
Packing: 180/200m per roll wrapped PE films outside
OEM and Customized Package service are offered.
