Ultra-sonic Therapeutic Equipment

Product Features: 1. Treatment completely underwater (underwater 30 cm); 2. Worked continuously for a long time (for units, clinics, community use); 3. Ultrasound in the treatment of the first export process; 4.9 stalls accurate treatment.

Normal working conditions Therapy Ambient temperature 5 ~ 40 Relative humidity ≤ 80% Atmospheric pressure of 86 kPa ~ 106kPa Working power ac220V ± 22V, 50Hz ± 1Hz.

Power: ≤ 100W Ultrasonic frequency: 1.05MHz ± 5% Ultrasonic pulse repetition rate: 100Hz Maximum rated output power of ultrasound: 12.5W The average time the largest average output space sound intensity (ISATA) ≤ 3W / c Handheld ultrasound in the treatment of the first effective radiation area: 5.0c ± 10% The largest non-uniform coefficient of ultrasonic beam: 6 Treatment In the appropriate treatment to the treatment of regional and painted the first ultrasound coupling agent, treatment of the first handheld to the role of ultrasound in the treatment area and minor slow movement (moving velocity of about 1cm / S).

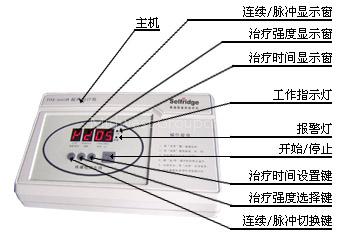

The course of treatment will be flashing display indicates that the normal work. The course of treatment to hear "beep, beep" sound of the call, four boldface screen appears, indicating that there is no hand-held ultrasound in the treatment of first contact with the treatment site, and the coupling agent is often less than or why not come into contact with.

When treatment time has been completed, equipment will be issued "" then the sound of the A prompt return to the standby mode. To ultrasound in the treatment of the first clean, and disconnect the power supply apparatus and equipment placed well. Simon Xu Midwest Group Midwest, No.1, 3rd. Street, Shangdi, Haidian, Beijing, China, 100085 nbsp; ext. 249
