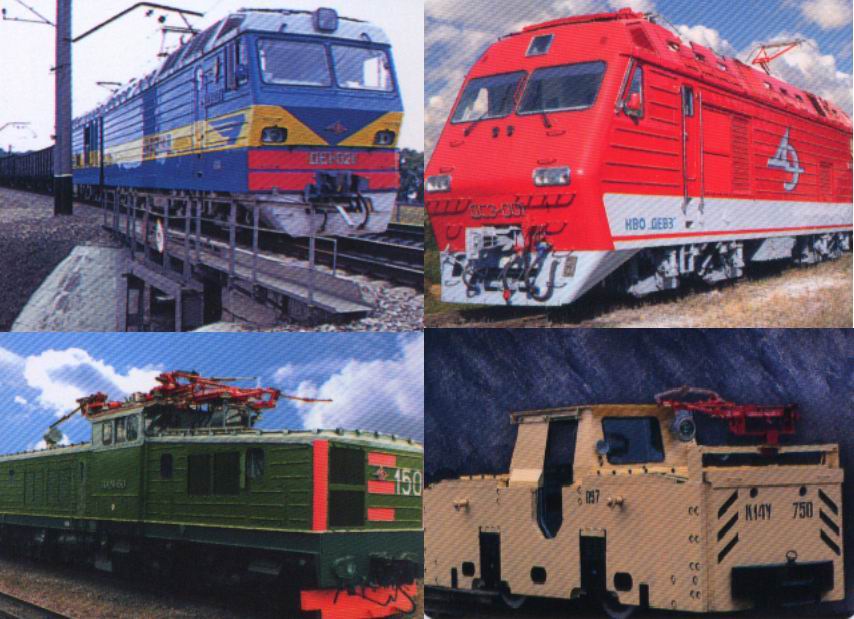

Ukraine Locomotives And Mine Locomotives

Specifications: Cargo and passenger mainline electric locomotives Voltage of contact system 3 kw(direct current) or 25 kw(alternate current) Weight, t 184 or 90 Axle formula 2o-2o)(2o-2o) or(2o-2o) Maximal speed, km/h 100 or 160 Continuous power on engine shafts, kw 6260 or 4800 Traction force in continuous mode, kn 396 or 270 Length along the automatic coupling axles, mm 32000 or17000 Contact mine electric locomotives Locomotives are designed for the operation on haulage ways of main horizons of coal and ore mines.

Weight, t - 10 or 14 Track, mm - 600,750,900 Nominal voltage of direct current, kw - 0,25 Engines power, kw - 66 Speed, km/h - 12,2 Traction force, kn - 19 Traction units Units are designed for the operation on electrificated railways of open mine fields and consist of control electric locomotive and two ore one-motor dump cars
