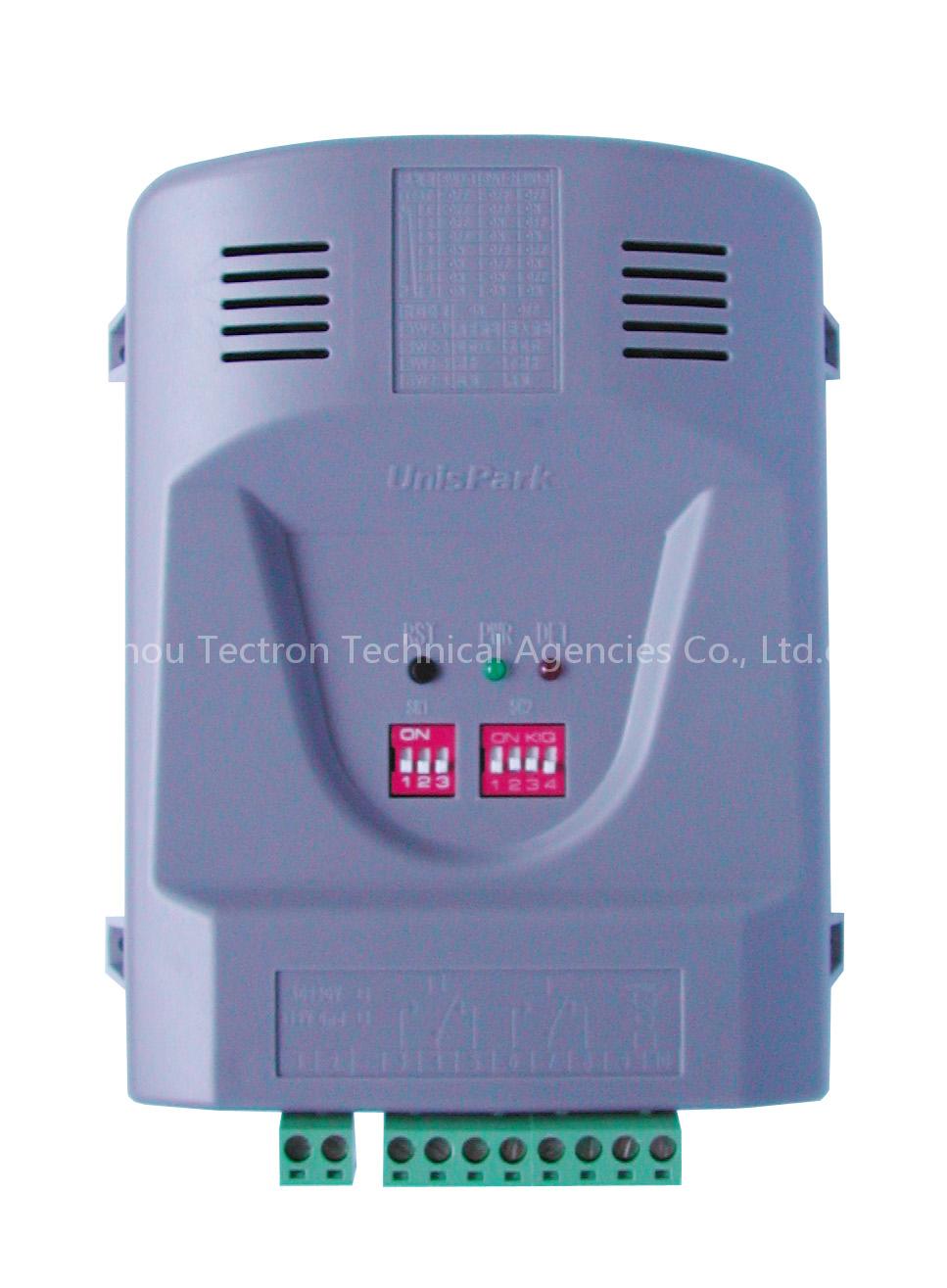

UP-VD0100 Vehicle detector

VD0100 vehicle detector plays a very important role in the parking system. It is used to trigger the reader and the card-issuing machines, to count the vehicle numbers.When the car is passing, the induction coil current passes to the circuit boards.

The stem nodes control signal produced by the circuit boards passes to the host controller or electric barrier gate.CHARACTERISTIC: provide protection of the thunder and lightning and other possible moment damage; 2.

Coil frequency instructions, prompts the user to select the operating frequency through the allocation of code to avoid the adjacent coils that may exist between the crosstalk; the coil open or short-circuit fault with automatic detection; used in accordance with the power to operate automatic calibration; 5.

It has automatic adjustment to the highest sensitivity and reliable detection of trailers, trailer, high chassis vehicles, etc.; 6.

Adjustable sensitivity classification.FUNCTIONS: Each channel detector system can monitor an inductive ring loop at the same time, when the vehicle passed its metal parts will change to a sense of the loop to a sense of value, this change by a microprocessor after receiving an analysis, which detect the status of vehicles .ADVANCED TECHNOLOGY: VD0100 uses advanced microprocessor technology to automatically adapt to the environment temperature and changes in the road, reliable detection of various types of vehicles, to facilitate the installation of wiring, multi-output model.

Small in shape but superior performance, operating stability, and ensure the reliability of preventing damage to vehicles.TECHNICAL SPECIFICATIONS: Coil inductance 20-1000μH

Frequency range 25~110KHz

Sensitivity 1-9 adjustable

Response time <100 ms

Output type Existence of two sets of pulse relay

Output pulse width About 300 ms

Working frequency Between 40-60KHz

Power AC220V/2W

Temperature -20℃ ~ +70℃

Humidity 5%~95%

Dimensions 77×45×110(mm)
