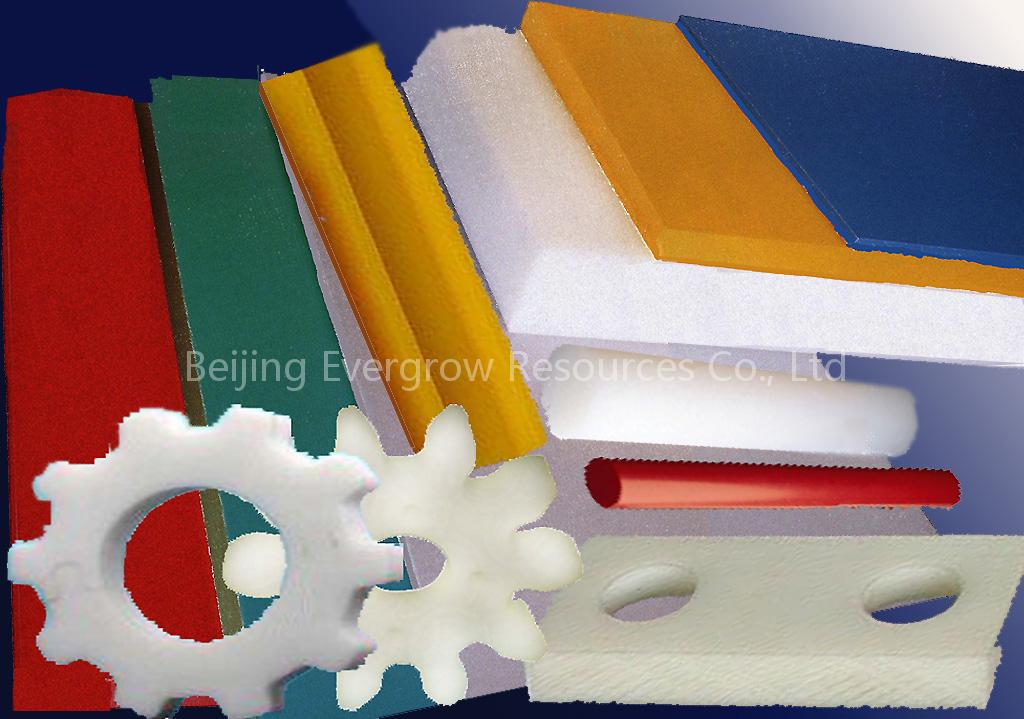

UHMW BAR/UHMWPE ROD is a Business Services product. Key specs — Origin: CHINA; Price Term: CFR.
Product Description
UHMW PE's feature
Very high abrasion resistance
Very high impact strength
Very low coefficient friction
Good self-lubricant property
Excellent resistance to chemicals
Good resistance to low temperature
Excellent dielectric properties
Diameter mm Roundnessless mm Length mm
15 ≤3 ±1.5 1000
20 ≤3 ±1.5 1000
30 ≤3 ±1.5 1000
40 ≤3 ±1.5 1000
50 ≤5 ±2.5 1000
70 ≤5 ±2.5 1000
80 ≤5 ±2.5 1000
100 ≤6 ±3 1000
120 ≤6 ±3 1000
140 ≤6 ±3 1000
160 ≤6 ±3 1000
180 ≤6 ±3 150
200 ≤6 ±3 150
250 ≤6 ±3 150
300 ≤6 ±3 150
380 ≤6 ±3 150
400 ≤6 ±3 150
500 ≤6 ±3 150
1000~2000 ≤6 ±3 150
Main technical specification
Item unit value
Tensile strength Mpa ≥ 24
Break elongation % 140
