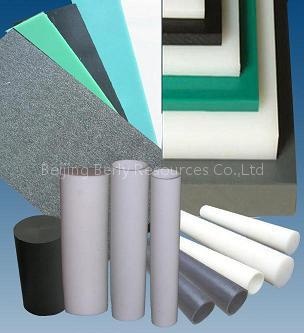

UHMWPE SHEET/pipe/rod

Advantage :
1. The highest abrasion resistance of any thermoplastic polymer
2. Outstanding impact strength even at very low temperatures
3. An excellent sliding material due to the low coefficient of friction
4. Self-lubricating (non-caking and sticking)
5. Good chemical and stress cracking resistance
6. Easily machined

(1)
uhmwpe sheet
Size:Width X Length (mm)
600 x 600,900 x 1200,2000 x 1000,
2100 x 1200,4000 x 1000
Thickness (mm) :6.5-150
Other sizes are available upon request.

2
UHMWPE Rod
Specification:
Size :15,20,30,40
Out Of Roundness:3
Diameter Tolerance: +-1.5
Length:1000mm

Size :50,70,
Out Of Roundness:5
Diameter Tolerance: +-2.5
Length:1000mm

Size :100,140,160,180,200.
Out Of Roundness:6
Diameter Tolerance: +-3
Length:1000mm

General Applications:
1. Food processing bearings, guide rails, rollers.
2. Chain guides, chain tensioners , agricultural diverters.
3. Wastewater treatment scraper blades
4. Wear strips
5. Wear plates
6. Bearings

(3)
UHMWPE pipe(tube)
Specification
25,32,40,50,63,75,90,110,125,140,
160,180,200,225,250,280,315,355,400,450,500,630.

General Applications:
In the transportation of particle,powder,corrosive liquid and gas,it's the premier selection.
