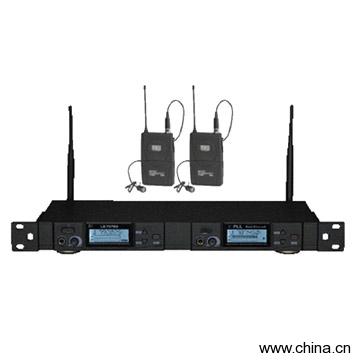

UHF Wireless Microphone is a Microphones product. Key specs — Origin: China (Mainland).
Product Description
Model No.:U-9700B
Product Origin:China
Brand Name:POSHING
Price Terms:FOB Guangzhou
Payment Terms:30% T/T in advance, 70% L/C at sight
Certification:CCC, FCC, CE
Description:Product Name: UHF Wireless MicrophoneModel Number: U-9700BPlace of Origin: ChinaSystem:1) Frequency range: UHF 500~960MHz (tunable)2) Modulation mode: FM (PLL)3) Nominal / peak deviation: ±25kHz / < ±48kHz4) Frequency stability:> ±15ppm5) AF frequency response: 60Hz~18kHz6) S/N (1 mV RF and peak deviation):>110dB (A)7) T.H.D. (at nominal deviation and 1kHz): ≤1%8) Temperature range: -10~+55 degreesReceiver:1) Sensitivity (peak deviation): 3uV (52dB S/N)2) AF output voltage (at peak deviation 1kHz AF out):a) Balanced: +10dB (XLR) b) Unbalanced: +4dB (1/4", 6.3mm jack socket)3) F/N ratio:>80dB4) P/N ratio:>80dBTransmitter:1) RF output power at 50 ohm: 8~30mW2) RF squelch:>50dB
