Listing ID#10145540
ModelMR6061U
CategoryOther Security & Protection Products

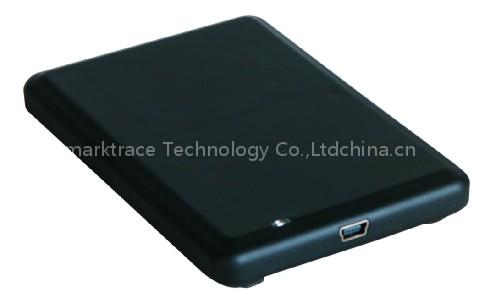

UHF Desktop Reader and Writer
Specifications
- Brand
- Marktrace
- Origin
- Shenzhen
Quick answer
UHF Desktop Reader and Writer is a Other Security & Protection Products product. Key specs — Brand: Marktrace; Origin: Shenzhen.
Product Description
With completed self intellectual property rights MR6061U USB Desktop is the smallest desktop reader all over the world, compliant to ISO18000-6B,EPC C1 GEN2(ISO18000-6C) standard protocol, reading distance up to 0.3m. MR6061U USB desktop reader can connect PC via USB port, no need external power supply. It is apply for different kinds of application like people management and movable office request application, etc.
Technical Parameter
Model | MR6061U |
Protocol | ISO18000-6B,ISO18000-6C(EPC GEN2) |
Frequency Range | ISM902~928MHZ, ISM 865~868MHz or other frequency (custom made) |
Operation Mode | FHSS |
RF Power Output | 10dBm |
Reading Rate | Software Programmable,Average Reading per 64Bits:<10ms |
Reading Mode | Command |
Communication Ports | USB |
Reading Range | < 0.1M |
Reading Clue | Buzzer and LED |
Antenna | Built-in small round polarization Antenna |
Power Supply | USB interface to get power from computer |
Dimension | 10.4*6.8*1.0cm |
Weight | 0.1kg |
Operation Temp | -10℃~+60℃ |
