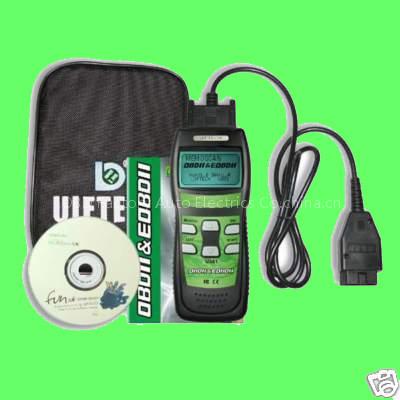

U381

1.1 Tool Description

Display , 128*64 pixel display with contrast adjustment, Backlit

2.enter key selects displayed

key go back to the previous screens

arrows-moves the selection pointer and scrolls up or down.

arrows-Select responses and moves cursor.

6.OBDII connector cable, connect car and the scan tool

7.Battery compartment

1.2 Product Specifications

Display-Backlit LCD,128*64 pixel display.

Operating Temperature- 0 to 50

Internal Power- 9v Cell

External Power: 10.0 to 15.5 vols provided via vehicle battery

Dimensions:

195mm Length 81mm Width 32mm Height

OBDII connector , 1500mm

1.3 Product Features

Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO, KWP 2000.

Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs)

trouble codes display on the LCD, needn't the code book.

Scanning live data

Reading Freeze Frame Data

Testing I/M Reading Status

Reading vehicle info

Rescanning Data

VEHICLE COVERAGE:

GM '96 - Current Year (OBD-II)

Ford '96 - Current Year (OBD-II)

Chrysler '96 - Current Year (OBD-II)

Toyota '96 - Current Year (OBD-II)

Honda '96 - Current Year (OBD-II)

NISSAN '96 - Current Year (OBD-II)

All other Asian and European '96 - Current Year (OBD-II)

G.Weight: 1KG
