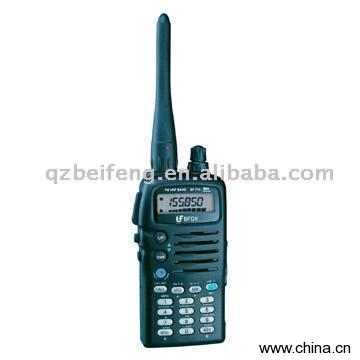

Two-Way Radio is a Telecommunications product. Key specs — Origin: China (Mainland).
Product Description
Model No.:BF-71A&B Product Origin:China Brand Name:BFDX Price Terms:FOB Xiamen Payment Terms:L/C, T/T Certification:ISO9001 Description:Product Name: Two-Way RadioModel Number: BF-71A&BPlace of Origin: ChinaFeatures:1) Large screen LCD and backlit keyboard2) 200 multifunction memory channels3) Memory of corresponding object function4) Frequency range setup function5) Multifarious scanning function6) Multifarious optional frequency setup7) Frequency direct entrySpecifications:1) Models: VHF, UHFa) Frequency range: 136-250MHz, 400-470MHzb) Communication range: 5-15km (on broad area)c) Channel number: 200d) Operation voltage: 8.4Ve) Modulation mode: 16K F3Ef) Frequency stability: 5ppmg) Frequency step: 25kHz, 12.5kHzh) Antenna impedance: 50i) Operation temperature: -20 - +60°Cj) Dimensions: 112 x 54 x 34mmk) Weight: 280g (including battery)2) Transmitter: VHF, UHFa) Power output: 3W, 2Wb) Max. frequency deviation: +/-5kHzc) Adjacent-channel power: -60dBd) Spurious radiation: -60dBe) Modulation sensitivity: 12mVf) Audio distortion: ≤5%g) Transmitting current: 1,200mA, 800mA3) Receiver: VHF, UHFa) Bandwidth: +/-7.5kHzb) Selectivity: 60dBc) Intermodulation rejection: 60dBd) Spurious response rejection: 60dBe) Receiving sensitivity: better than 0.2V (12dB SINAD)f) Squelch sensitivity: 0.1Vg) Audio output: 500mW (less than10% THD)
