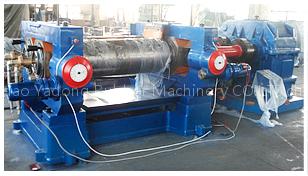

Two Roll Mixing Mill (Bearing)
Specifications
- Brand
- Yadong
- Origin
- CHINA
- Price Term
- FOB
Quick answerTwo Roll Mixing Mill (Bearing) is a Business Services product. Key specs — Brand: Yadong; Origin: CHINA; Price Term: FOB.
Product Description
|
Mode | XK-550B | XK-660 | Roller diameter (mm) | Φ550 | Φ660 | Working Length of the roller(mm) | 1500 | 2130 | Working Linear speed of front roll (m/min) | 27.94 | 28.1 | Friction Ratio of front and rear roll (m/min) | 1∶1.22 | 1∶1.24 | Max Gap(mm) | 15 | 15 | Capacity per batch (kg) | 50-60 | 165 | Driving motor power ( Kw ) | 110 | 245 | Overall dimension (mm) | L | 5900 | 7465 | W | 2680 | 3662 | H | 2080 | 2750 | Weight (kg) | 27000 | 6500 | Note: | Bearing |
Mainly used for plasticating crude rubber, mixing of rubber materials, warming up of mixed rubber and pressing to sheets etc. |
