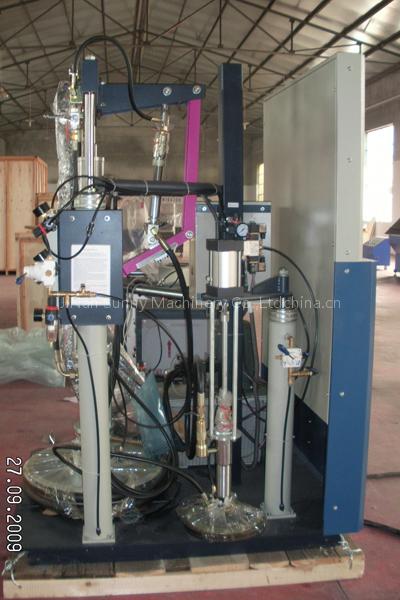

Two Component Sealant Extruder

Functions and Features:

1.It is composed of raw material pump, solidification pharmaceutical pump, proportional pump, sealant-mixture system, hydraulic pressure system, electronic system and so on.

2.Raw material pump, solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the material can be supported equivalently in two-way. The raw material pump is compelled by the hydraulic pressure system while the solidification pharmaceutical pump is compelled by the pneumatic motor.

3.There are high-pressure valves in the underpart entrance of solidification pharmaceutical filter and material-feeding place of the mixing device and one-way valve is set in the nixing device so as to prevent two-components from fleeing each other. Silicone Extruder Machines, Silicone Extruder Machinery, Silicone Extruder Equipment, Silicone Extruder Equipments, Two Component Sealant Spreading Machine.

4.Rising and falling system is controlled by hand valve and the proportion of the two-components can be changed by adjusting the slipper in the swinging pole. Tightening the nut once the demanding scale is reached.

Technique parameter:

Mixing ration proportion of mixture6:1-14:1

Raw material barrel55galon(200L)

Solidification pharmaceutical barrel5galon(20L)

Max.air-consumption volume0.5m3/min

Max. squeeze pressure20Mpa

Air source pressure0.5-0.8Mpa
