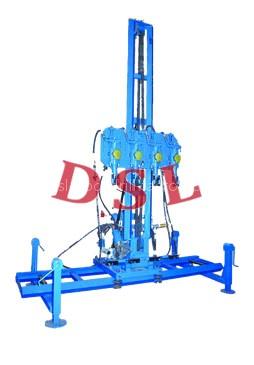

TwoFour-Multifunctional rock driller

Instruction Two/Four-Multifunctional rock driller is mainly used in quarrying, available for horizontal, vertical, and slantwise drilling with accuracy to divide large blocks into smaller pieces, which is necessary to assist diamond wire saw machine working in stone quarries.Two-hammer Rock Driller for Vertical and horizontal Drilling (Heavy Type)
Specification

Driller Code	DSL-B24/28
Hammer	2-YT24/28
rated track length	2*3m
max.drilling depth	6m
drilling diameter	34mm-42mm
minimum air pressure	0.5-0.7MPa
drilling speed	2*30m/h(one head)
total compressed air consumption	10 20m3/min
track travel	2m
Feed System	Pneumatic motor, chain
cross travel device	Handwheel,gear,rack
drilling direction	Any direction
number of the hammer	2 4
total weight	1000 1100kg
