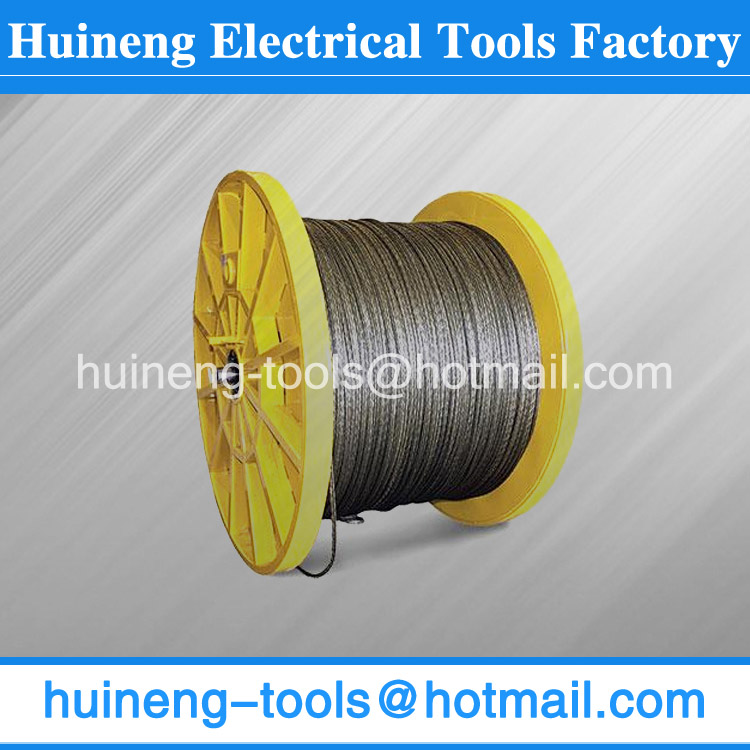

Twist Galvanised Steel Pulling Rope 3/8"

The anti-twisting rope is availabe with several diameters that depends on the type of the machine such as there are diameters of 9,11,13,15, 16,18,20,........28,30mm and these ropes have many advantages: 1-high flexibility. 2-complete stability to rotation. 3-homogeneous distribution of pressure between the elementary wires.

4-increased efficiency during stringing operations. 5-strands with individual galvanized elementary wires. Specifaction Model No. Rope Dia. Breaking Load Strand Dia.

Structure Unit Weight Remark DLAT-01 7mm 35 kN 2.0mm 8x19W 0.160 kg/m 8 strands DLAT-02 9mm 54 kN 2.5mm 8x19W 0.26 kg/m 8 strands DLAT-03 11mm 77 kN 3.0mm 8x19W 0.373 kg/m 8 strands DLAT-04 13mm 105 kN 3.5mm 8x19W 0.510 kg/m 8 strands DLAT-05 15mm 137 kN 4.0mm 8x19W 0.667 kg/m 8 strands DLAT-06 9mm 50 kN 2.0mm 12x19W 0.250 kg/m 12 strands DLAT-07 10mm 70 kN 2.3mm 12x19W 0.356 kg/m 12 strands DLAT-08 11 mm 85 kN 2.5mm 12x19W 0.405 kg/m 12 strands DLAT-09 12 mm 100 kN 2.7mm 12x19W 0.510 kg/m 12 strands DLAT-010 13 mm 115 kN 3.0mm 12x19W 0.620 kg/m 12 strands DLAT-011 14 mm 130 kN 3.2mm 12x19W 0.710 kg/m 12 strands DLAT-012 15mm 143 kN 3.3mm 12x19W 0.770 kg/m 12 strands DLAT-013 16mm 160 kN 3.5mm 12x19W 0.800 kg/m 12 strands DLAT-014 18mm 206 kN 4.0mm 12x19W 1.06 kg/m 12 strands DLAT-015 19mm 236 kN 4.3mm 12x19W 1.21 kg/m 12 strands DLAT-016 20mm 266 kN 4.5mm 12x1T25 1.31 kg/m 12 strands DLAT-017 20mm 275 kN 4.5mm 12x1T29 1.35 kg/m 12 strands DLAT-018 22mm 313 kN 4.8mm 12x1T25 1.49 kg/m 12 strands DLAT-019 22mm 325 kN 4.8mm 12x1T29 1.54 kg/m 12 strands DLAT-020 24mm 342 kN 5.0mm 12x1T29 1.65 kg/m 12 strands DLAT-021 24mm 375 kN 5.2mm 12x1T29 1.80 kg/m 12 strands DLAT-022 26mm 400 kN 5.4mm 12x1T29 1.95 kg/m 12 strands DLAT-023 26mm 405 kN 4.5mm 18x1T29 2.02 kg/m 18 strands DLAT-024 28mm 462 kN 6.0mm 12x1T25 2.24 kg/m 12 strands DLAT-025 28mm 540 kN 5.2mm 18x1T25 2.63 kg/m 18 strands DLAT-026 30mm 582 kN 5.4mm 18x1T29 2.93 kg/m 18 strands DLAT-027 31mm 680 kN 5.8mm 18x1T29 3.36 kg/m 18 strands DLAT-028 32mm 727 kN 6.0mm 18x1T29 3.60 kg/m 18 strands
