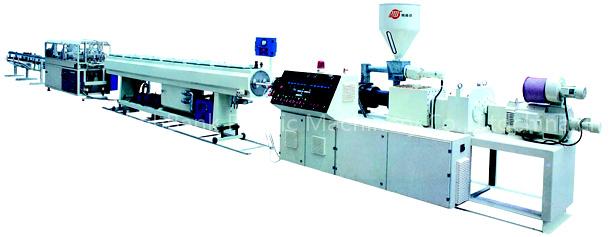

Twin Pipe Extrusion Line

First class pipe die was designed with many years experience .

Perfect twin pipe vacuum sizing system.

Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device.

Optional length set and accurate adaption stacker.

PVC Twin-Pipes Production Line

(Φ16 40mm)

I, SJSZ-51/22 conical twin-screw extruder

1,main machine dragging power 22kw, frequency control, metering feeding devices, motor power 0.75kw.

2,equip with vacuum device, motor power 1.1kw.

3,low-noise cooling fan control180wX2 sets.

4,automatic powder feeding system, motor power 1.1kw.

II, Die head, using 40Cr forged, quenched and tempered.

1, Specification: Φ16 40mm, pipe mode, using one mode twin-pipes.

III, Vacuum sizing spraying tank, stainless steel material, length 4 m .

1, with vacuum pump 3kwX1 set

2, with water pump 3kwX1 set

3,with back and forth electric shift, power 0.55kw.

IV, Traction machine (dual pulling and dual cutting in one system)

1, tractor effective holding length 800mm, traction power 1.5T, V-type clamp, hauling power 1.5kw.

2, cutting machine with electronic meter control,double-cutting with cylinder, cooperating with reversal stacker Cut-to-Length.

V,Reversal stacker

Length 4 meters,double reversal, with cylinder, dropping automatically.

Auxiliaries shared by the two production lines:

1, SHR-200/500 mixer 1set,double-speed motor power 30/42/4kw, body material stainless steel,overall dimension 1600*1100*1640.

2,SWP 360 crusher,1set,motor power 11kw,

overall dimension 4580*2240*2470.

About assembling, adjustment and after-sell service

1The seller send engineers to help assembling and adjusting equipments in the buyers workshop, the buyer will be responsible for tickets cost and accommodation

2The seller offer One-year quality guarantee for the equipments , the buyer must operate the equipment in proper way(Wearing parts and non-appropriative parts not in warranty. such as: belts, chains, bearings, blades, etc.)

3The seller offer the buyer directions for producing pipe products and whole set of technics
