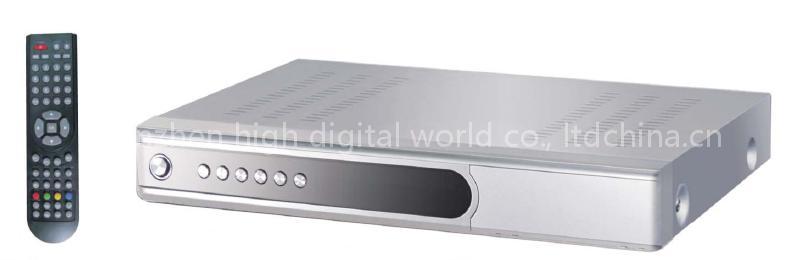

TwinStar SD satellite receiver

Feature
Fully DVB-S2/MPEG-2
Twin Tuner
NIT Auto Search,, List Search, Blind Search, Manual Search
Support EPG (Electronic Program Guide)
Powerful Program Management and Level Restriction Features for Parental Locking
Favorite Programs Management
Auto and Manual Software Update System (On Line)
Normal/Stand-by Mode Switch according to pre-setting
16 Days EPG
PVR TimeShift and Playback
JPEG & MP3 Player
Low Power Consumption( < 1w Standby Mode)
Resolution 576i,486i

Specifications
Tuner
Demodulator Mode QPSK,8PSK,16APSK
Frequency Range 950~2150MHz
Input Impedance 75 ohm
RF Output Connector IEC 169-2 Male
Subtitles & Teletext
Standard ISO/IEC 13818-2 and ISO/IEC 14496-10
Transport Stream ISO/IEC 13818-1
Video Decoding 4,AVC/H. 264 L3 Compatible
Video Output PAL/NTSC/AUTO
Aspect Ratio 4:3, 16:9
Standard ISO/IEC13818-3TR1011154
Audio Decoding MPEG-1 and MPEG-2 Layer I & II III,AAC, HEAAC(option), HEAAC V2(option), AC3(option)
Subtitle DVB Subtitle and TELETEXT Subtitle
Teletext EBU TELETEXT

PVR:
RECORD 1 Stream Recording and 1 Stream Timeshitf in different TP at same time
Channel Change while Recording
EGP Timer Record and 5 Timer Trigger for Record
Descramble and Scramble of Stream Record
Support Total TS Stream Record including EPG, Subtitle, Teletext
Timeshift Support Timeshitf on/off setting in Menu
PVR Operation Play/Pause/Stop/Step
Fast Forward/Fast Backward 2/4/8/16/24
Jump step by step and length of step (30secs/1min/5min/30min)
PVR Manager Support NTFS & FAT32
File Lock, Delete, Rename File Information

Front Panel:
LED ON / OFF to indicate the various status of the STB
7-segments LED To display the channel number or/and other information
Keys 3/7 keys (Standby, ch+/cg-, Vol+/Vo-%, Menu, OK)
ONe CA Support(ISO7816)
USB port 2.0version for PVR

Rear Panel
Tuner in Receive the signal from antenna
Tuner out Support a share antenna output
Y/ Pb/ Pr Component Video Output
CVBS outputs CVBS Video Output
Audio CINCH Analog Audio L/R connectors (white/red color)
Coaxial S/PDIF Digital Audio output
RS232C 9 pin D-sub Type(male for female), Transfer rate 115.2Kbps

Accessories
Remote Controller Unit IR (36kHz) RC3 / other on request (38kHz)NEC
Batteries 2 xAAR6 type
User Manuel English
RCA Cable 1

Power
AC Input Range 100~240VAC(SMPS)
Power Consumption Max.15W
Physical Operating Temperature 0 0C-400C
Storage Temperature -10 0C- +650C
Size (W x H x D in mm) 260x170x40 or 260x170x55
Weight 1.5Kg
