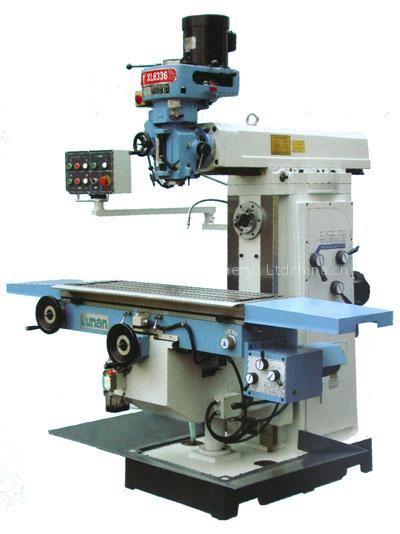

Turret Milling Machine
Specifications
- Origin
- Shandong, China
- Price Term
- FOB
Turret Milling Machine is a Other Farm Machines product. Key specs — Origin: Shandong, China; Price Term: FOB.
Product Description
Specification | Unit | Technical parameters |
Spindle taper | ISO40(VERTICAL) ISO50(HORIZONTAL) | |
Spindle travel | mm | 140 |
Sleeve feed | mm/r | 0.04/0.08/0.15 |
Distance from vertical spindle to column | mm | 200-600 |
Distance from vertical spindle to table | mm | 180-530 |
Distance from horizontal spindle to table | mm | 0-350 |
Distance from horizontal spindle to arm | mm | 230 |
Spindle speed range | r/min | 63~2917/10(vertical) 60~1800/12(horizontal) |
Table size | mm | 1250×360 |
Table travel | mm | 1000×320×350 |
Range of longitudinal,cross travel | mm/min | 15~370/(MAX.540) |
Up/down speed of table | mm | 590 |
T of table(N0./WIDTH/DISTANCE) | mm | 3/18/80 |
Main motor | kw | 5.5(vertical)4(horizontal) |
Motor of table power feed | kw | 0.75 |
Up/down motor of headstock | kw | 1.1 |
Coolant pump motor | kw | 90 |
Speed of coolant pumps | L/min | 25 |
Overall dimension | mm | 2220×1790×2360 |
N.W./G.W. | kg | 2340/2540 |
