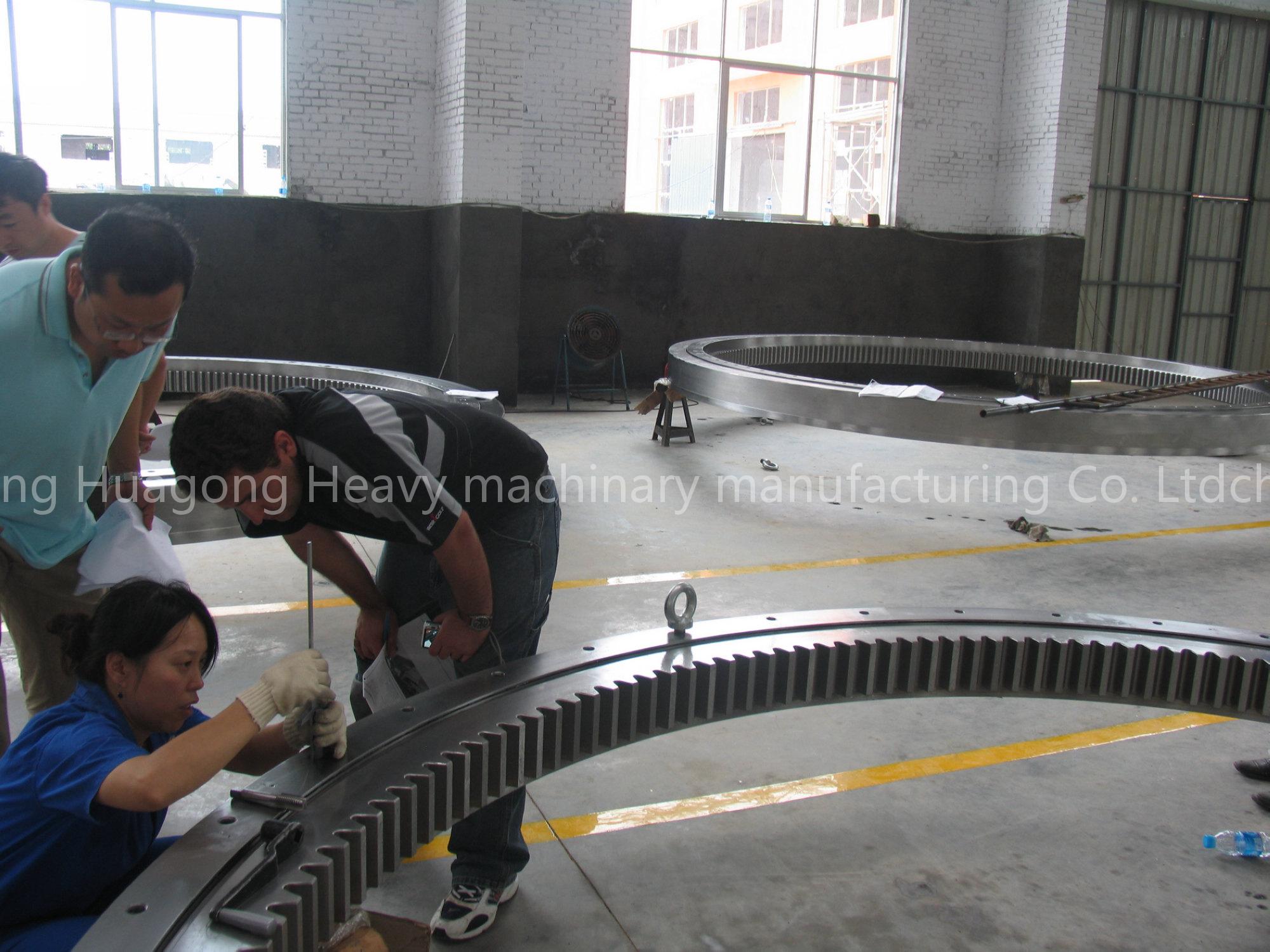

Turntable bearing

Key advantages for customer success 45 days prototype lead time 60 days production lead time Price guarantee to beat competition Size range from 200 mm (8”) to 6300 mm (248”) in diameter ISO 9001 certified manufacturer of slewing bearing Quality Control by USA, Competition Price in China. Material: GB42Cr Mo, AISI4140, DIN42Cr Mo4, BS708A42

Specification: Outer Diameters : 115.75" (2,940 MM) Inner Diameters: 103.78" (2,636 MM)

Height: 4.49" (114 MM)

Capacity: Coa= 12,460,000 N Turning Torque < 200 N Gearing : Internal Gear

Application: Segment Erector of TBM (Tunnel Boring Machines);
