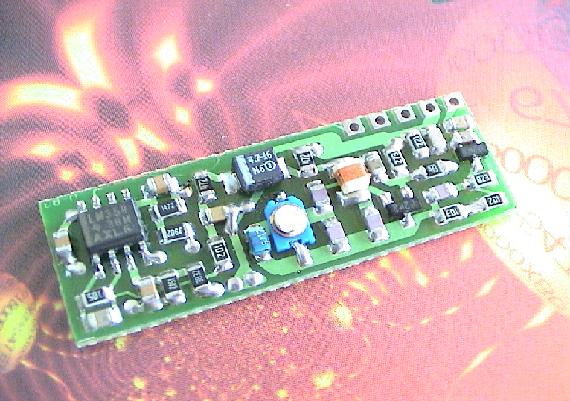

Turkey ARX-34 RF Receiver Module

Specifications: General description: The ARX-34 UHF ASK data receiver is developed to cover a band plan ERC Recommendation on Short Range Device (SRD) in the range of 434MHz ISM band. The ARX-34 is designed for PCB mounting. A simple wire can be soldered to the antenna input or the antenna can be printed on the PC board.

Specifications: Modulation : ASK Frequency : 433.920 MHz RF Sensitivity : -108 dBm Bandwidth : 4 MHz Data Rate : 2.4 kbps Supply Voltage : 5 VDC Dimensions (mm): 40x14x8 Applications: * Remote control system * Telemetry system * Social alarm system * Security alarm system * Paging system
